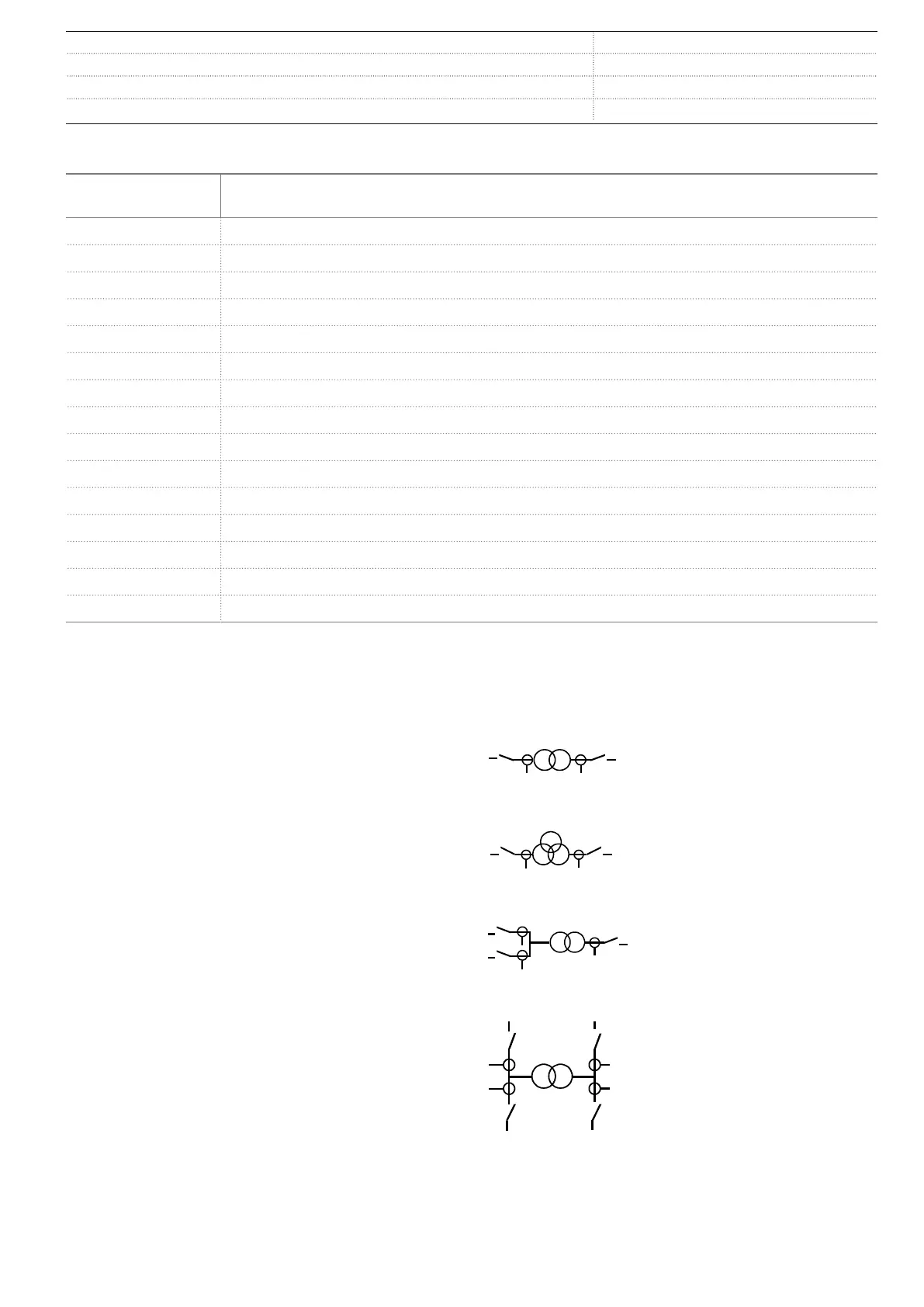

Table 1. Basic IED functions, continued
IEC 61850 or function
name
Description
ALTRK Service tracking
ACTIVLOG Activity logging parameters
FSTACCS Field service tool access via SPA protocol over ethernet communication
PCMACCS IED Configuration Protocol
SECALARM Component for mapping security events on protocols such as DNP3 and IEC103
DNPGEN DNP3.0 communication general protocol
DNPGENTCP DNP3.0 communication general TCP protocol
CHSEROPT DNP3.0 for TCP/IP and EIA-485 communication protocol
MSTSER DNP3.0 for serial communication protocol
OPTICAL103 IEC 60870-5-103 Optical serial communication
RS485103 IEC 60870-5-103 serial communication for RS485
IEC61850-8-1 Parameter setting function for IEC 61850
HORZCOMM Network variables via LON
LONSPA SPA communication protocol
LEDGEN General LED indication part for LHMI
3. Differential protection
Transformer differential protection T2WPDIF/T3WPDIF
The Transformer differential protection, two-winding T2WPDIF
and Transformer differential protection, three-winding
T3WPDIF are provided with internal CT ratio matching, vector
group compensation and settable zero sequence current
elimination.
The function can be provided with up to six three-phase sets of
current inputs. All current inputs are provided with percentage
bias restraint features, making the IED suitable for two- or
three-winding transformer in multi-breaker station
arrangements.
Two-winding applications
IEC05000048 V1 EN
two-winding power
transformer
IEC05000049 V1 EN
two-winding power
transformer with
unconnected delta
tertiary winding
IEC05000050 V1 EN
two-winding power
transformer with two
circuit breakers and
two CT-sets on one
side
IEC05000051 V1 EN
two-winding power
transformer with two
circuit breakers and
two CT-sets on both
sides
Three-winding applications
Transformer protection RET670 2.0
1MRK 504 141-BEN C
Product version: 2.0
ABB 23
