ABEM Terrameter LS
63
― Press <Up>
― Press <Ok>
6.10.3 VES Sounding Curve
In VES mode a sounding curve will be shown in a double logarithmic diagram on the
VES Curve View (Figure 71). Focus depth (median depth penetration) will be on the
vertical axis and apparent resistivity on the horizontal axis.

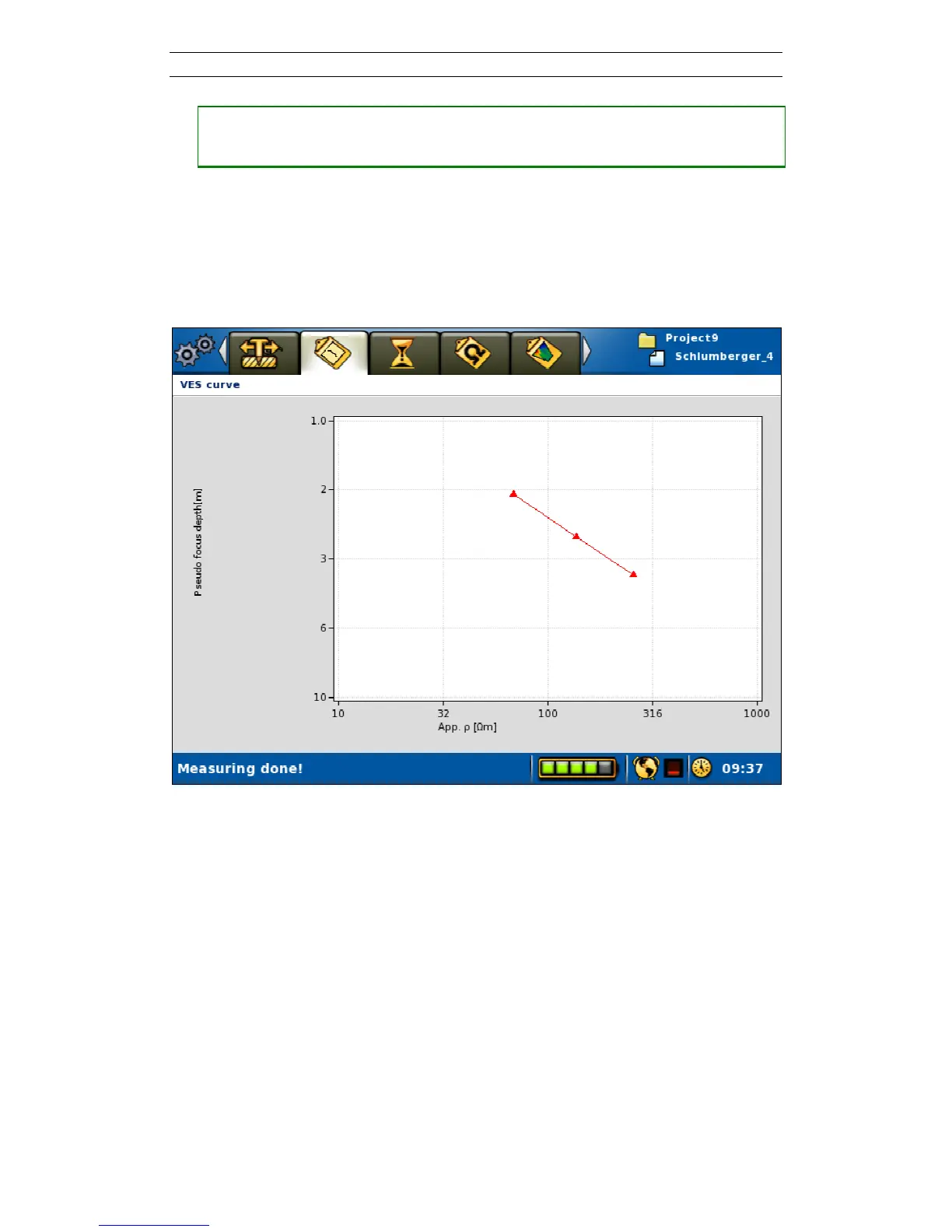

Figure 71. A VES Curve View example
