Configuring the Wallbox eMH3 – Manual RFID card administration |
41
NOTE
Administering RFID cards via the ABL Configuration Software
While the cards included with the stand-alone wallbox are already prepared for use, you must set up one of the
cards from the E017869 as a teach-in card using the ABL Configuration Software.
Setting up the ID tag cards from the accessory set E017869 is carried out in the Individual configuration
> Advanced configuration > Access control via RFID tab of the ABL Configuration Software, and is
described in the accompanying manual.

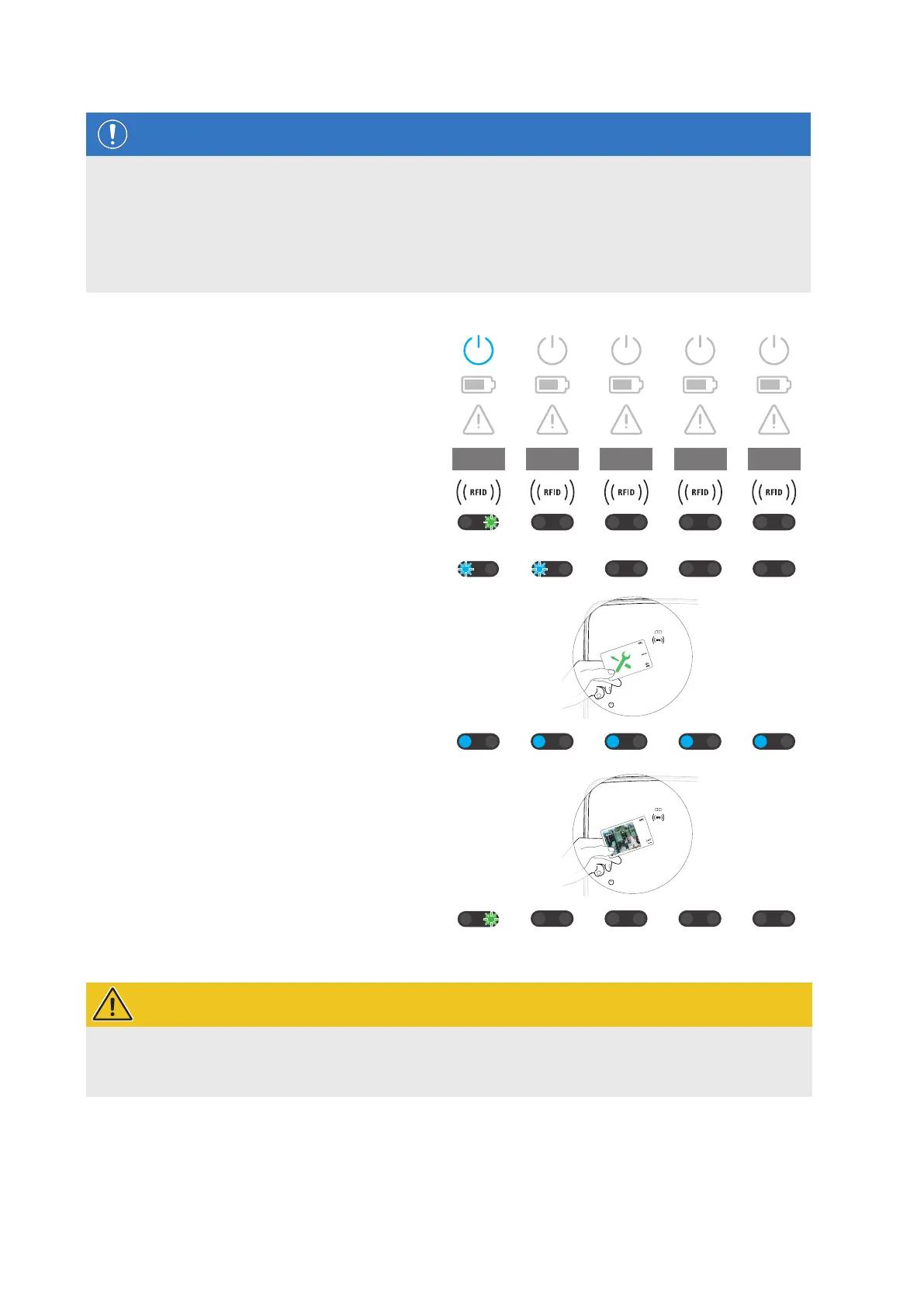

Proceed as follows to register an ID tag card manually at the wallbox:
1 Ensure that the wallbox is switched on and ready
for operation.
y The blue LEDs of both charge points are
flashing, while the green and red LEDs are OFF
(illustration: 1 cycle).
2 Check the LED indicators of the RFID module (illus-
tration: 1 cycle).
y If RFID access control is active, the green LED
flashes once or the blue LED flashes twice.
1 sec 1 sec 1 sec 1 sec 1 sec
or
3 Hold the teach-in card in front of the RFID module
on the housing cover.
y When the blue LED is permanently ON, remove
the teach-in card.
4 Now, hold a not previously registered ID tag card in
front of the RFID module on the housing cover with-
in 10 seconds.
y The ID tag card has been registered and can be
withdrawn when the green LED flashes once.
You can repeat steps 3 and 4 in order to register further ID tag cards on the wallbox's user list.
WARNING!
RFID module error message
If an ID card tag is already registered on the user list, or if no further cards can be registered in the memory of
the wallbox, the green and blue LEDs of the wallbox will flash permanently.
If required, you can reset the user list saved in the wallbox in order to prevent authorisation of previously registered
user ID cards.
