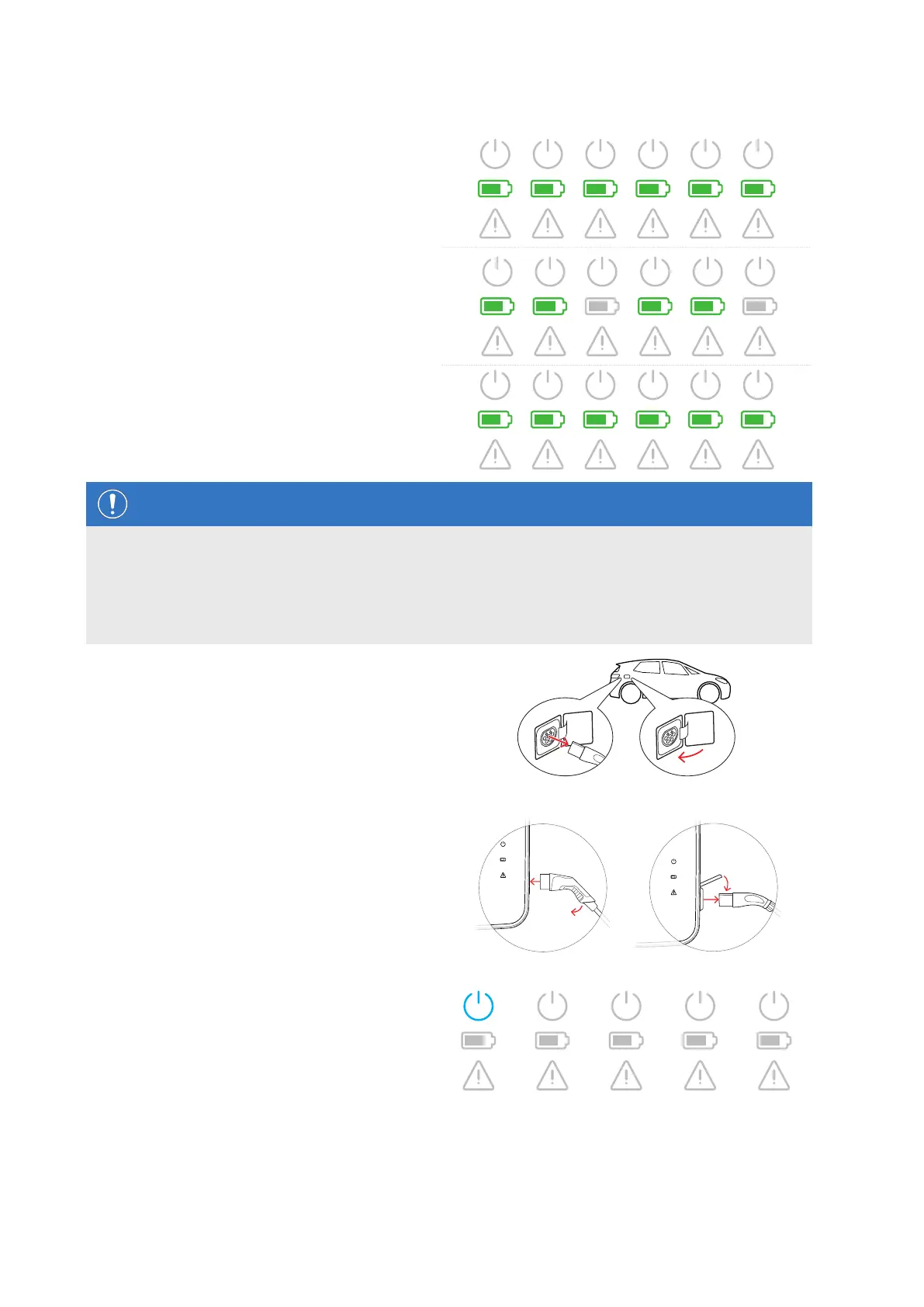

9 Check the LED indicators of the wallbox (illustra-
tion: 1 cycle).
y The green LED is continuously ON while the
wallbox waits for the charging procedure to be
initiated by the electric vehicle.
y When the charging procedure begins following a
request by the vehicle, the green LED flashes.
y When the charging procedure is paused or com-
pleted, the green LED is again continuously ON.
NOTE
Interruption or completion of the charging procedure
The charging procedure may be paused by the vehicle. Otherwise, the charging procedure is automatically termi-
nated by the vehicle upon completion.
Check the displays inside the vehicle: Should the vehicle not be fully charged upon completion of the charging
procedure, you may need to have it checked.
10 Unplug the charging connector from the electric ve-
hicle's charging inlet and close it.
11 Store the charging cable ready for the next charging
procedure.
y Wallbox with charging cable
Replace the charging connector in its storage
compartment.
y Wallbox with charging socket
Unplug the charging connector from the charging
socket and store the charging cable: the charging
socket flap closes automatically.
12 The wallbox is ready for operation and awaits the
next charging procedure:
y When the charge point is ready for charging
operations, the blue LED flashes, while the green
and red LEDs are OFF.
