LVD SCSIDE Bridge Manual
3.6 Installing ARS-2120
3.6.1 3.5” HDD
ARS-2120 is designed to connect two 3.5”HDDs. Extra accessories aren’t needed.
3.6.2 Internal Power Connection
The large connector of the Y-splitter power cord is for most IDE devices while the
small one for ARS-2120. Note that the first hard drive should be set as Master while
the second one as Slave.

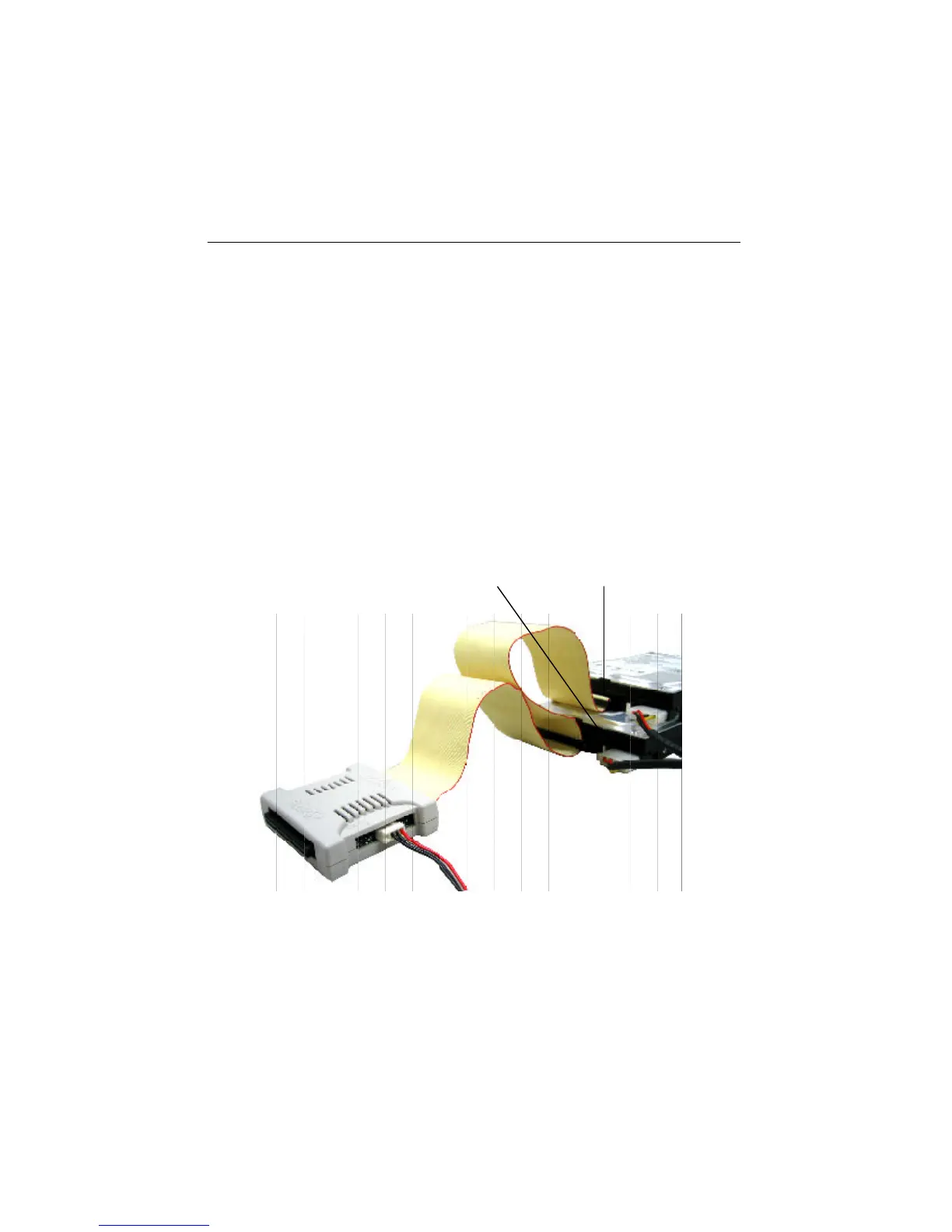

Figure 3-8
Slave (the 2nd HDD) Master (the 1st HDD)
