LVD SCSIDE Bridge Manual
3.3.2 Internal Power Connection
3.3.3 Cable Connection

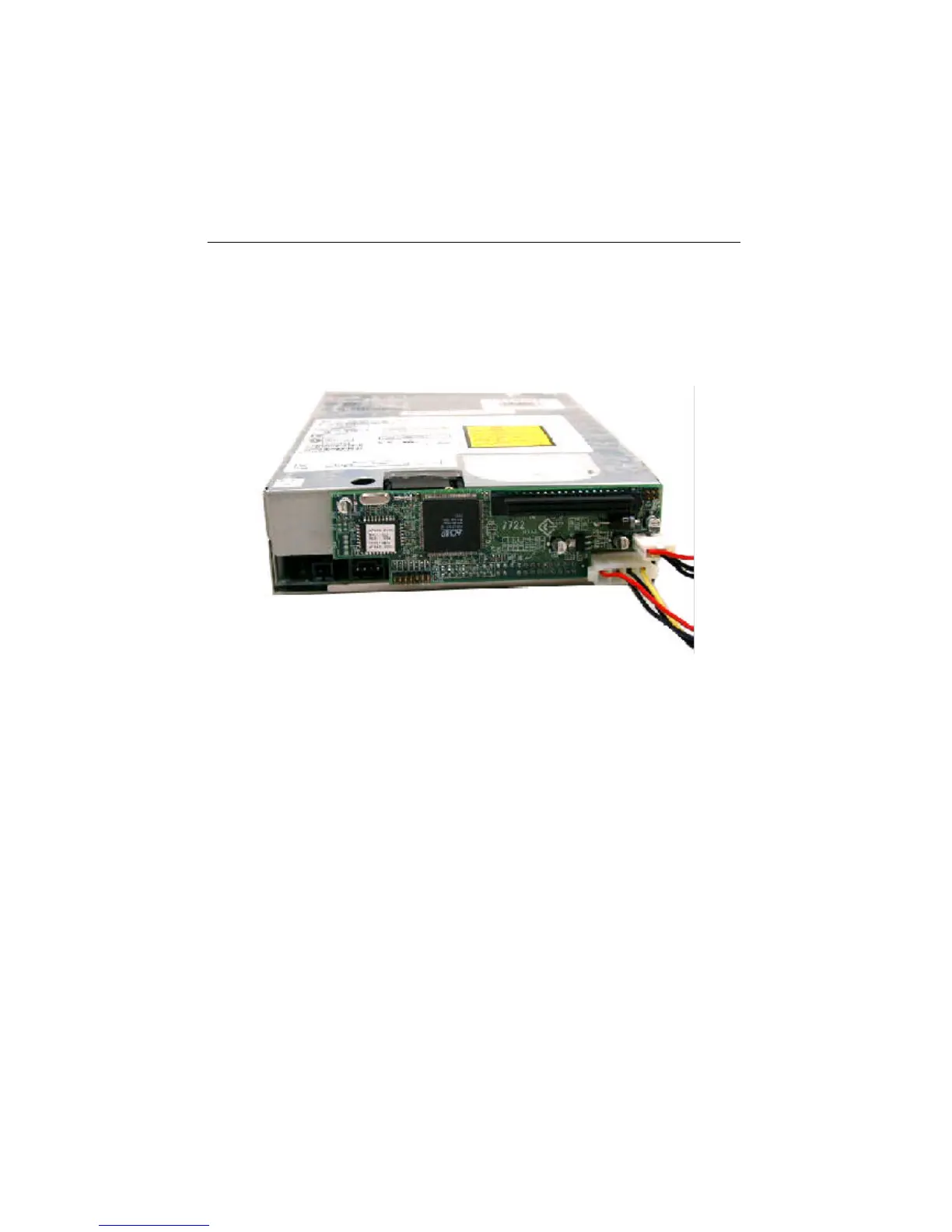

Figure 3-2
The large connector of the Y-splitter power cord is for most IDE devices while the
small one for AEC-7722.
Before connecting AEC-7722 to a DVD drive, you should tell the SCSI connector
from the IDE one. On the bridge the 68-pin connector is for SCSI adapter while the
40-pin one for IDE device. There is a new SCSI cable in the package of SCSI adapter
(optional). Connect it to AEC-7722.
