LVD SCSIDE Bridge Manual
3.8.2 Internal Power Connection
On ARS-2000LHS because the 44-pin CN5 supplies power to the hard drive, there
is no need of a small 4-pin connector. As to CN4, the large 4-pin connector, it sup-
plies power to the bridge.

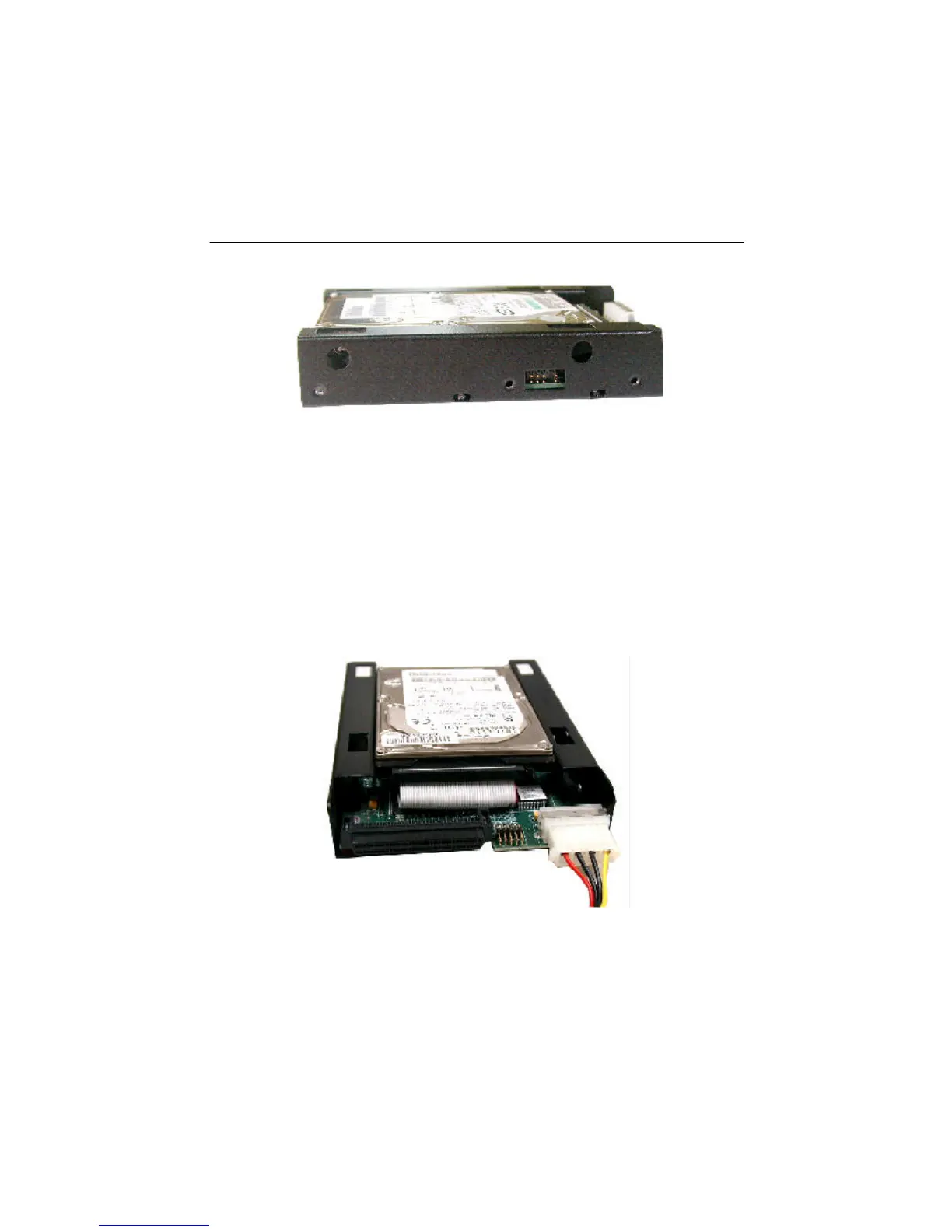

Figure 3-14
Figure 3-13
