LVD SCSIDE Bridge Manual
3.12 Jumper Setting on ARS-2120
SW1 is mainly used to set each device’s ID number on the SCSI adatper. Give your
IDE device a specific number according to the following figure.
SW2 is used to set the function of SCSI adapter. Give your IDE device a specific
function according to the following figure.

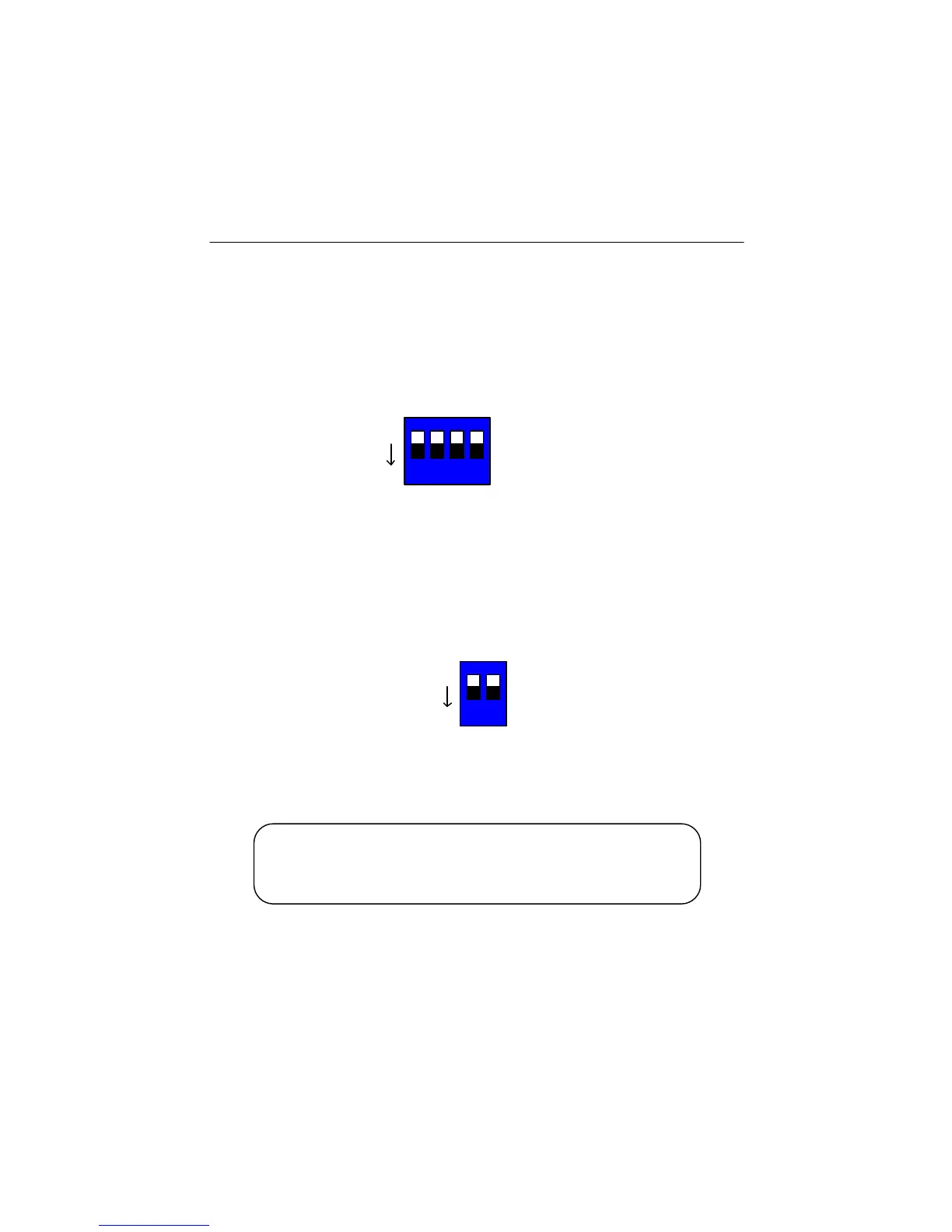

Figure 3-20
Figure 3-21
1 for ID1
2 for ID2
3 for ID4
4 for ID8
1 OFF for JBOD
1 ON for Normal
2 for reserve
NOTICE: In Normal mode there is no RAID functions.
Please set LUN as enable. (refer to user’s manual of SCSI)
1 2 3 4
ON
1 2
ON
