LVD SCSIDE Bridge Manual
3.14 Jumper Setting on ARS-2000LHS

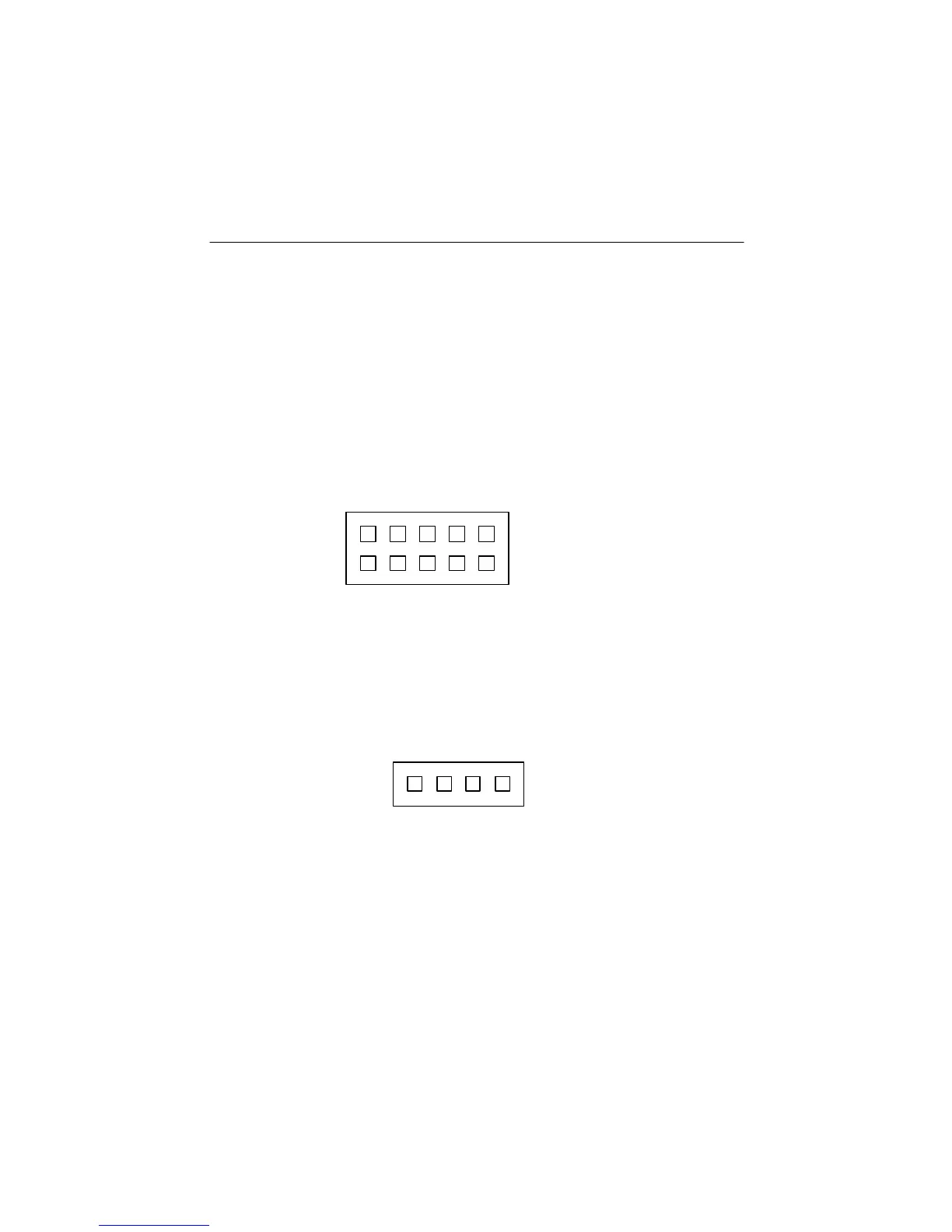

There is one jumper on ARS-2000LHS. JP1 has 10 pins in 5 columns. Column 1 is
for ID1, column 2 for ID2, column 3 for ID4, column 4 for ID8, and column 5 for
reserve.
JP1 is mainly used to set each device’s ID number on the SCSI adatper. Give your
IDE device a specific number according to the following figure.
1 for ID1
2 for ID2
left 3 for ID4
right 4 for ID8
5 for reserve
Figure 3-24
Besides, there is a SW1 on ARS-2000LHS. Its definition is as the following figure
shows.
1 for Force Single End
2 for RSV0
3 for RSV1
4 for RSV2
Figure 3-25
1 2 3 4 5
1 2 3 4
