LVD SCSIDE Bridge Manual

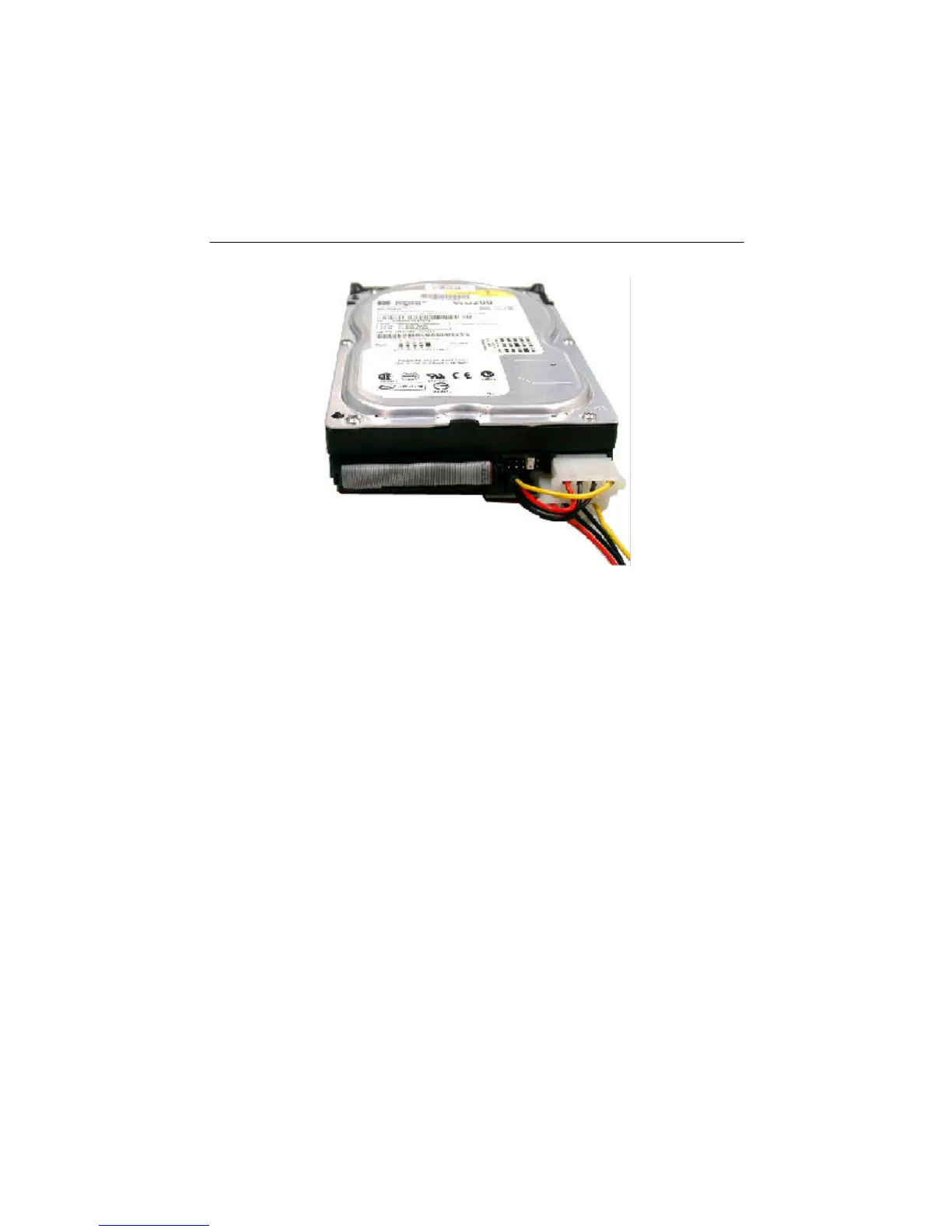

Figure 3-11
3.7.3 Cable Connection
Before connecting ARS-2000LFS to a hard drive, you should tell the SCSI connector
from the IDE one. On the bridge the 68-pin connector is for SCSI adapter while the
40-pin one for IDE device. There is a new SCSI cable in the package of SCSI adapter
(optional). Connect it to ARS-2000LFS.
1. Find out pin 1 of CN2 on ARS-2000LFS.
2. Find out pin 1 of the connector on the IDE hard drive.
3. Parallel these two connectors by pin 1 to pin 1 and connect them.
4. Find out the colored pin 1 of the connector on one end of SCSI cable, and connect
to the SCSI adapter.
