LVD SCSIDE Bridge Manual
3.4.2 Internal Power Connection

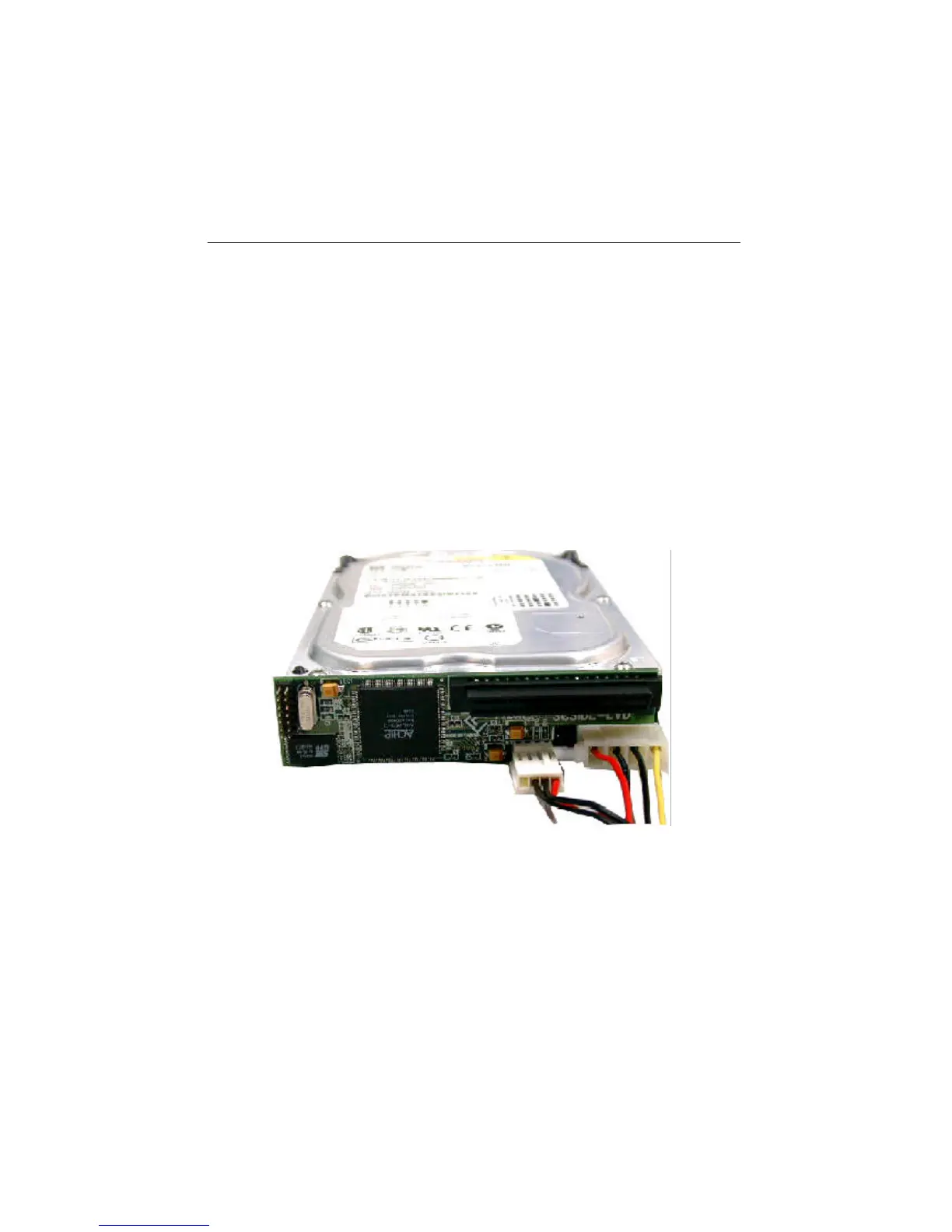

Figure 3-4
There are two kinds of internal power connectors providing power to the IDE device
and AEC-7726H/Q circuit board separately. The large connector of the Y-splitter
power cord is for most IDE devices while the small one for AEC-7726H/Q.
3.4 Installing AEC-7726H/Q
3.4.1 3.5” HDD
AEC-7726H/Q is designed for ATA hard drive. Extra accessories aren’t needed.
