AccuAir Rocker Switch Manual V2.7 © 2007 AccuAir Control Systems, L.L.C.
- Page 14 -
Height Sensor Installation:
Understanding suspension movement is the key to sensor mounting. The term
“vertical travel” means the amount of up and down distance that a point on a
suspension arm moves as it rotates. Realize that there is no “vertical travel” at the
arm’s pivot point. If you mount a sensor very close to a pivot point it will barely
travel at all. If you mount a sensor too far out on an arm, it will travel too far and

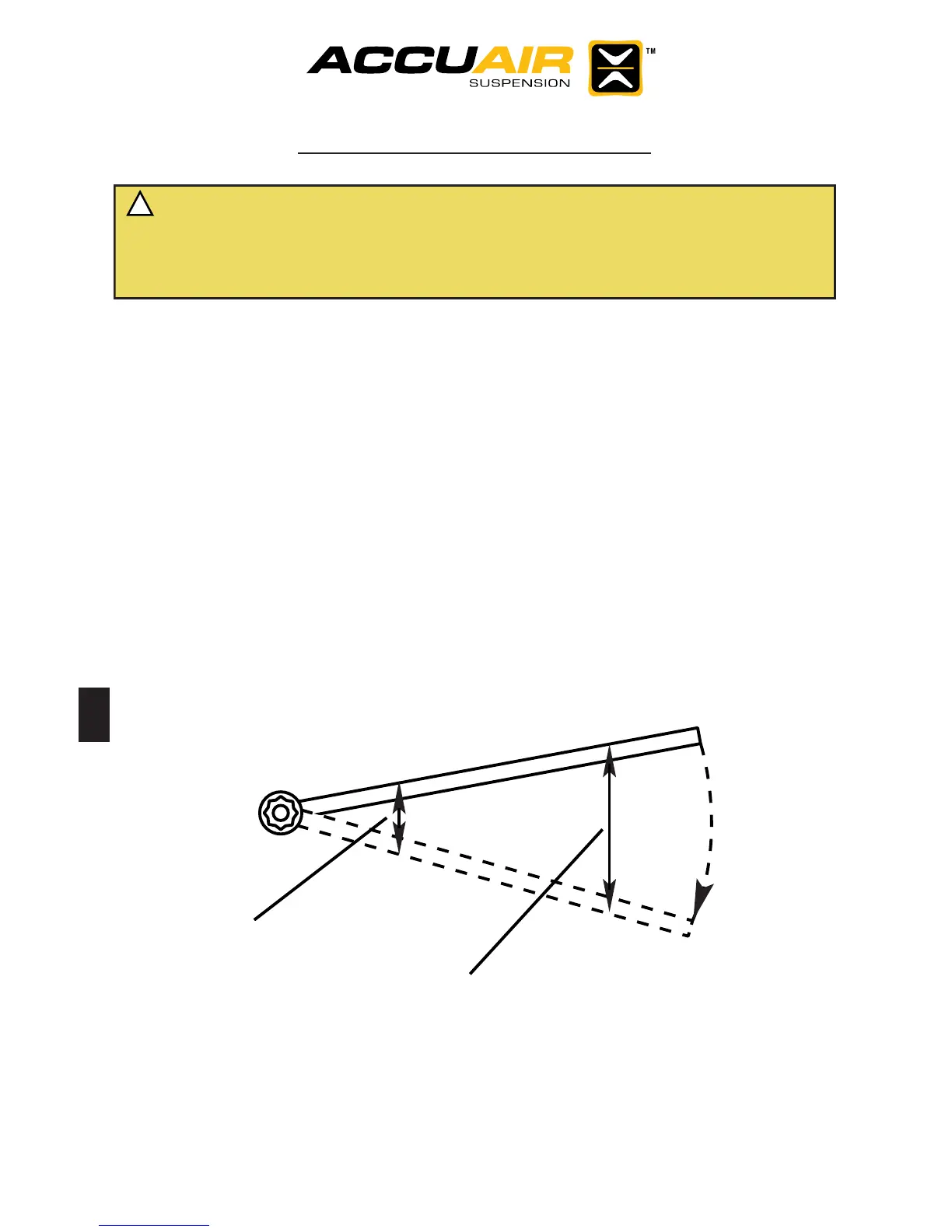

damage the sensor. See the following diagram for an illustration of this theory:
!
DANGER: Sensor installation requires viewing suspension movement
from underneath the vehicle. This must be done on a lift with ramps for
safety. Do not attempt to get under the vehicle while it is on the ground
or on jack stands for this process!!!
Large Vertical Travel
Small Vertical Travel
Pivot Point
Rotation
To Next Page
