Installing & Wiring Air Compressor(s):

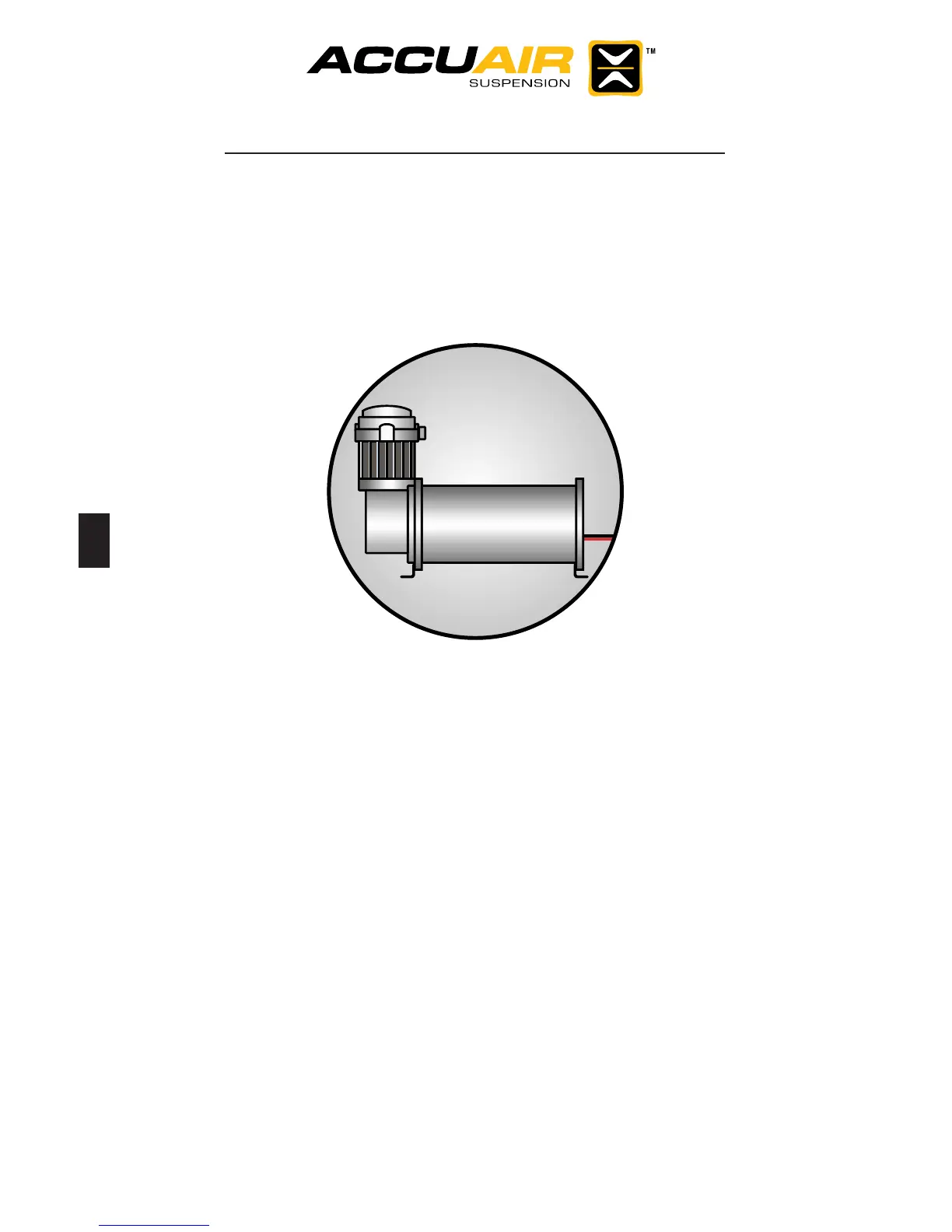

Air Compressor(s) Mounting Considerations
• There should be a fuse in between the Compressor(s) and the battery.
• The Compressor(s) get very HOT during operation. Make sure to leave space
between items that are susceptible to heat. (Wires, Nylon-Air Line, etc.)
Step-By-Step
1.) Find a location for the Compressor(s) to be mounted with good air
circulation.
2.) Transfer the hole pattern of the Compressor using the Air Compressor as
your template.
3.) Drill holes and bolt the Air Compressor(s) down.
4.) Install the Power Wire to the vehicle battery (12v+) with an inline fuse
(30Amps per Compressor) that is included with your Compressor(s) near the
vehicle battery (12v+).
5.) Install the Compressor Relay inline with the Compressor’s power line.
6.) Install the Ground Wire to vehicle/chassis ground. (Make sure to remove any
rust or paint to ensure a thorough ground)
