103
1)5A,1A: Real Value(Unit: A) = Waveform Value/1683.153;
2)333mV: Real Value(Unit: A) = Waveform Value/K (rmware above
3.21,K=14427.15; other: K = 15869.87);
3)100mV(Rope-CT):Real Value(Unit: A) = Waveform Value/K (rmware above
3.21,K=20291.1; rmware 3.20, K=22068.8,other: K = 15869.87);
4)mA CT:Real Value(Unit: A) = Waveform Value/K (80mA CT:K=7414.289;
100mA:K=9267.440; 200mA:K=18514.68 );The voltage and current value
obtained from the waveform are the PT or CT secondary side value.

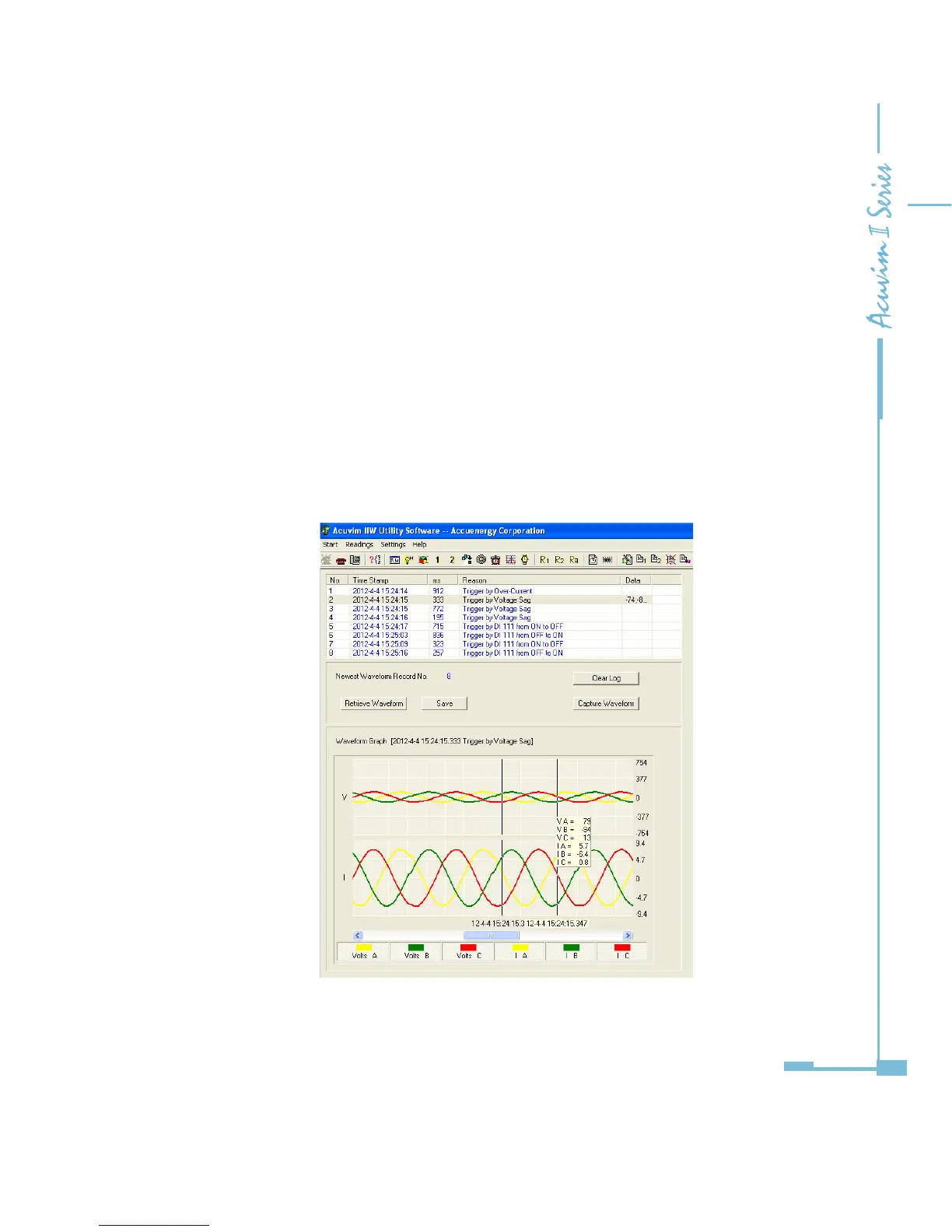

The waveform capture retrieve page is shown in Fig 4-14.
Fig. 4-14
