(Bottom View)

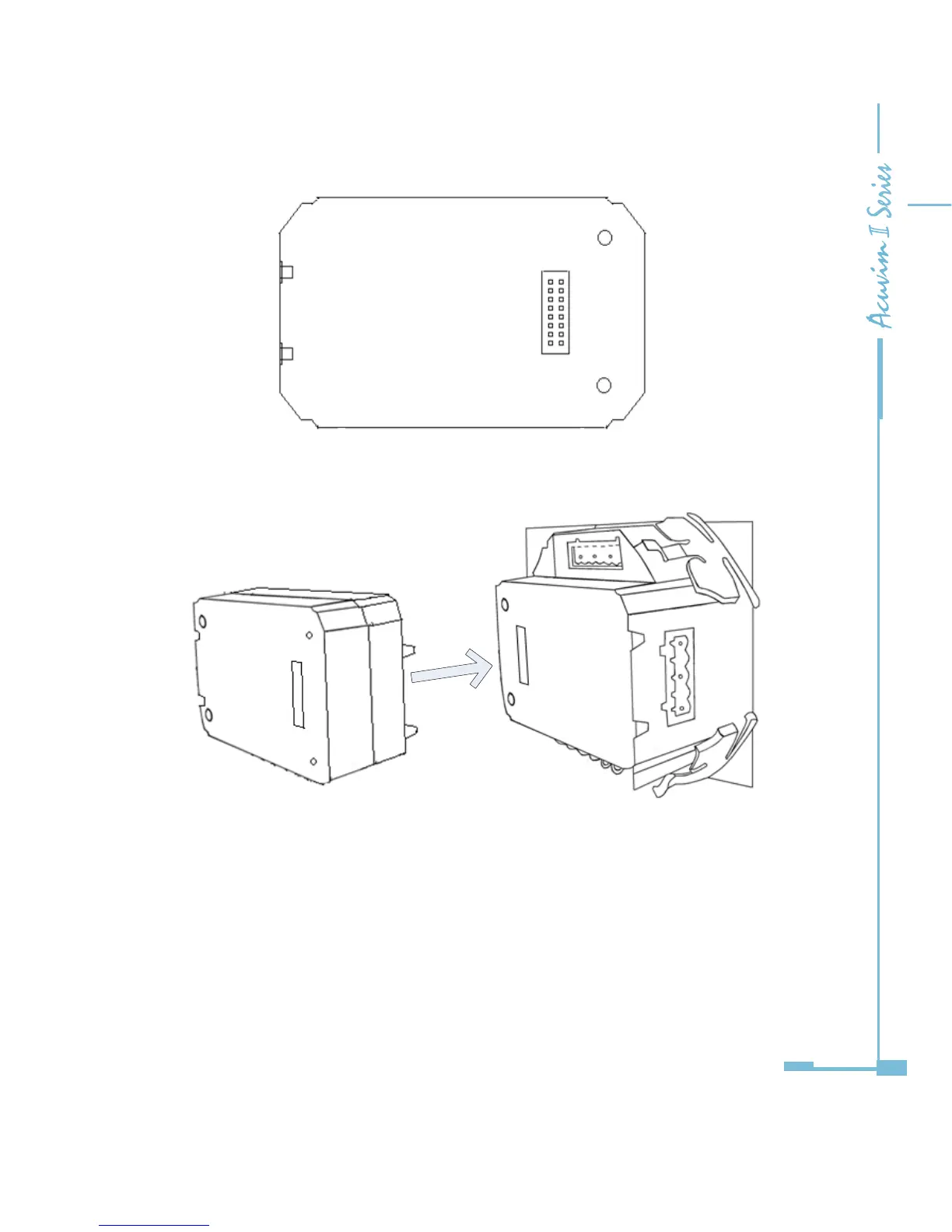

5.2.4 Installation Method
The Ethernet module is linked to the Acuvim II meter by a communication plug.
It can also be linked to other extended modules like IO modules.
1.Insert the installation clips to the counterpart of the meter, and then press the
Ethernet module lightly, so linking is established.
2.Tighten the installation screws.
