144
Note:
1. Install Ethernet Module carefully to avoid damage;
2. Under no circumstances should any installation be done with the meter
powered on. Failure to do so may result in injury or death.

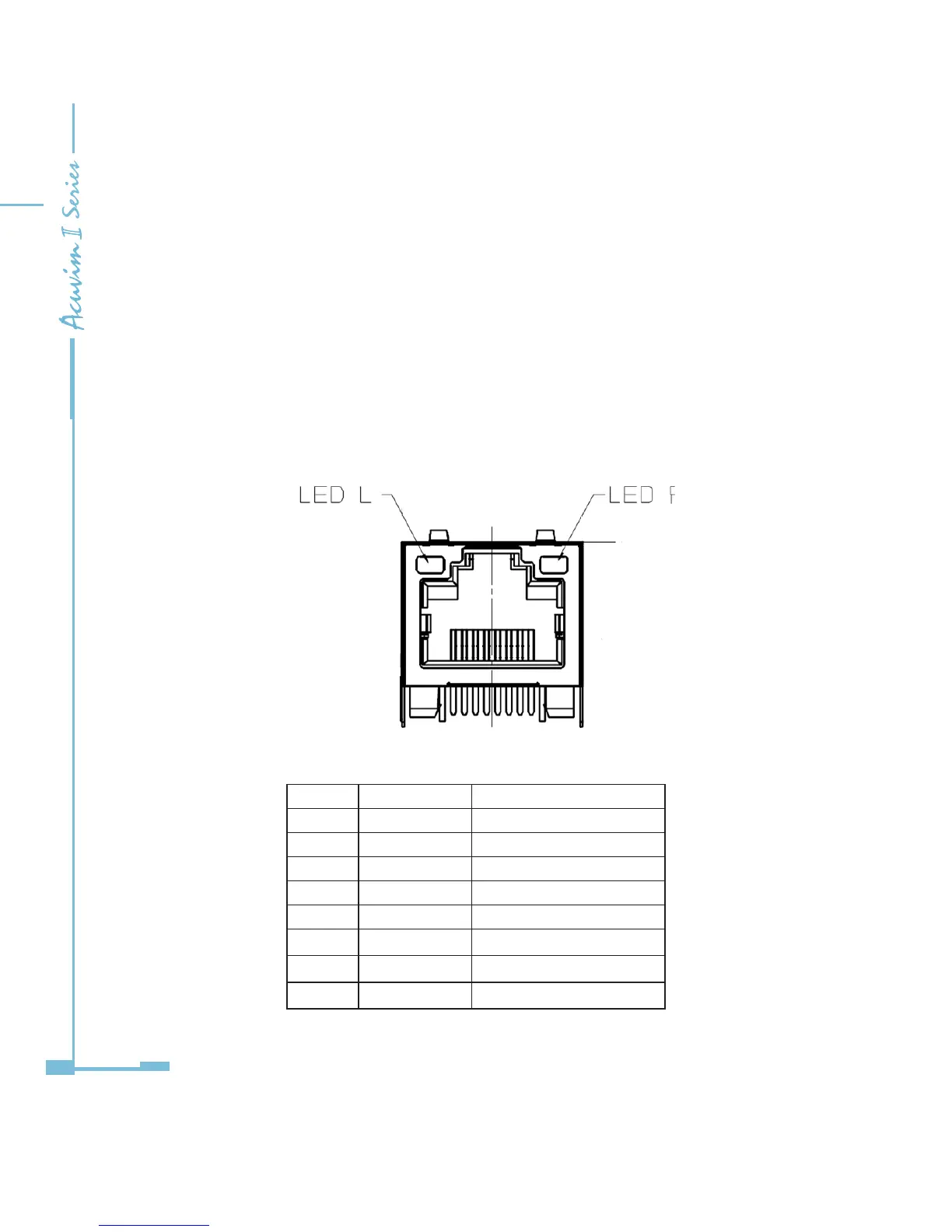

5.2.5 Denition of RJ45 Interface
The Ethernet module uses a standard RJ45 connector to access the Ethernet
network. The mechanical and electrical characteristics of the connectors
comply with the requirements of IEC 603-7.
(Top View)
Script ID Content
1 TX+ Tranceive Data+
2 TX- Tranceive Data-
3 RX+ Receive Data+
4 n/c Not connected
5 n/c Not connected
6 RX- Receive Data-
7 n/c Not connected
8 n/c Not connected
