Table 5-32
BACnet MS/TP facts
Network Type Serial RS-485 with a Master/Slave Token Passing protocol
Topology Line topology
Installation :
Any cable with at least 3 conductors can be used. Distance
between nodes depends on baud rate.
Speed 9600 kbit/s,19200 kbit/s, 38400 kbit/s and 76800 kbit/s
max. Stations: 127 MS/TP masters
Data Up to 480 bytes per telegram frame
Table 5-33
BACnet MS/TP facts
Network Type Ethernet based network using UDP for data transfer.
Topology Line or star topology (Standard Ethernet topology)
Installation : Ethernet twisted pair cables with RJ45 connectors
Speed 10/100 Mbit/s full duplex
max. Stations: No network limitation of number of nodes.
Data Up to 1476 bytes per frame

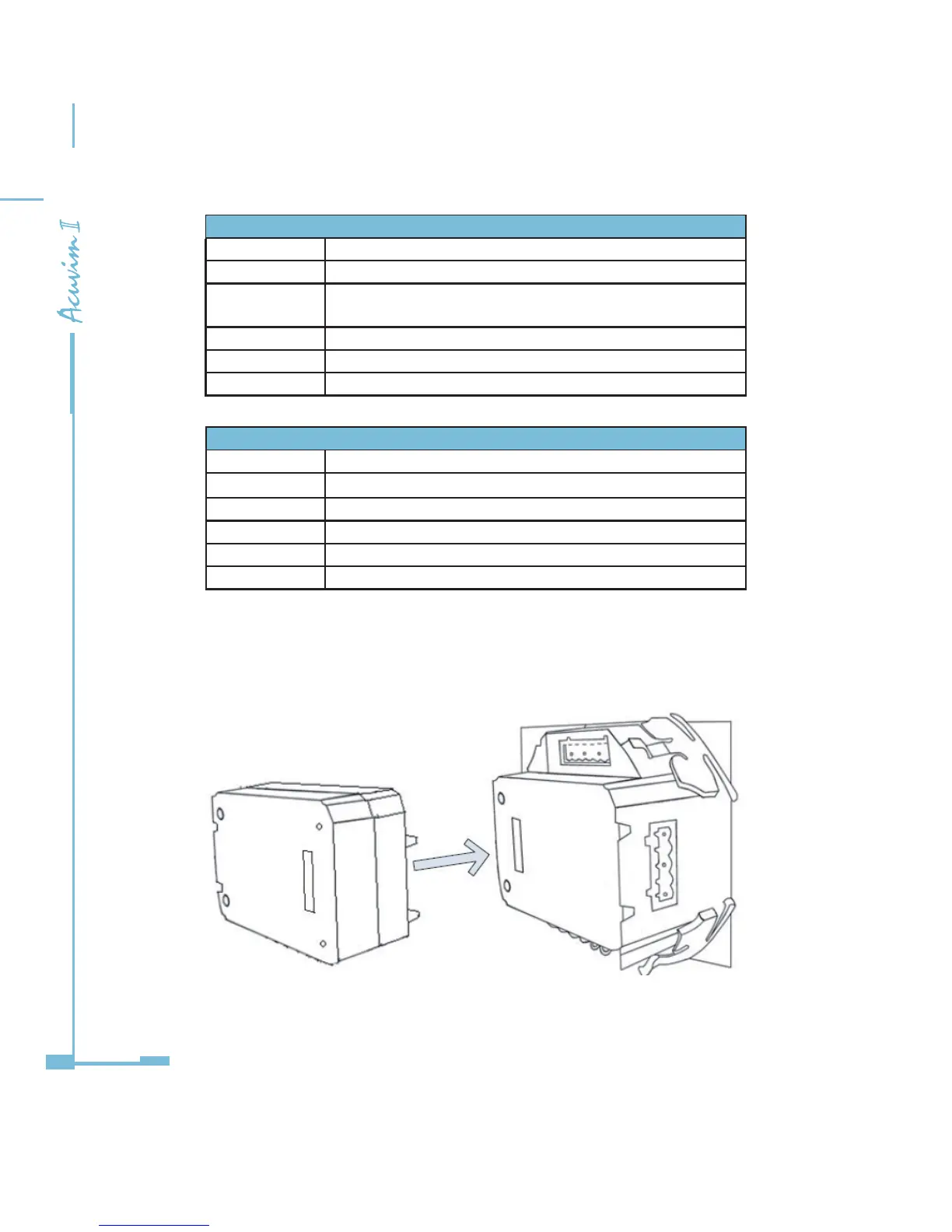

5.5.5 Using The BACnet Module (AXM-BACnet)
1. Installation Method
Fig 5-60
To Next Page
