207
Series
The BACnet module is linked to the Acuvim II meter by a communication plug. It
can also be linked to other extended modules like IO modules.
1) Insert the installation clips to the counterpart of the meter, and then press
the BACnet module lightly, so linking is established.
2) Tighten the installation screws.
Note:
1) Install BACnet Module carefully to avoid damage;
2) Under no circumstances should any installation be done with the meter
powered on. Failure to do so may result in injury or death.
2. Denition of RJ45 Interface and 485 Interface

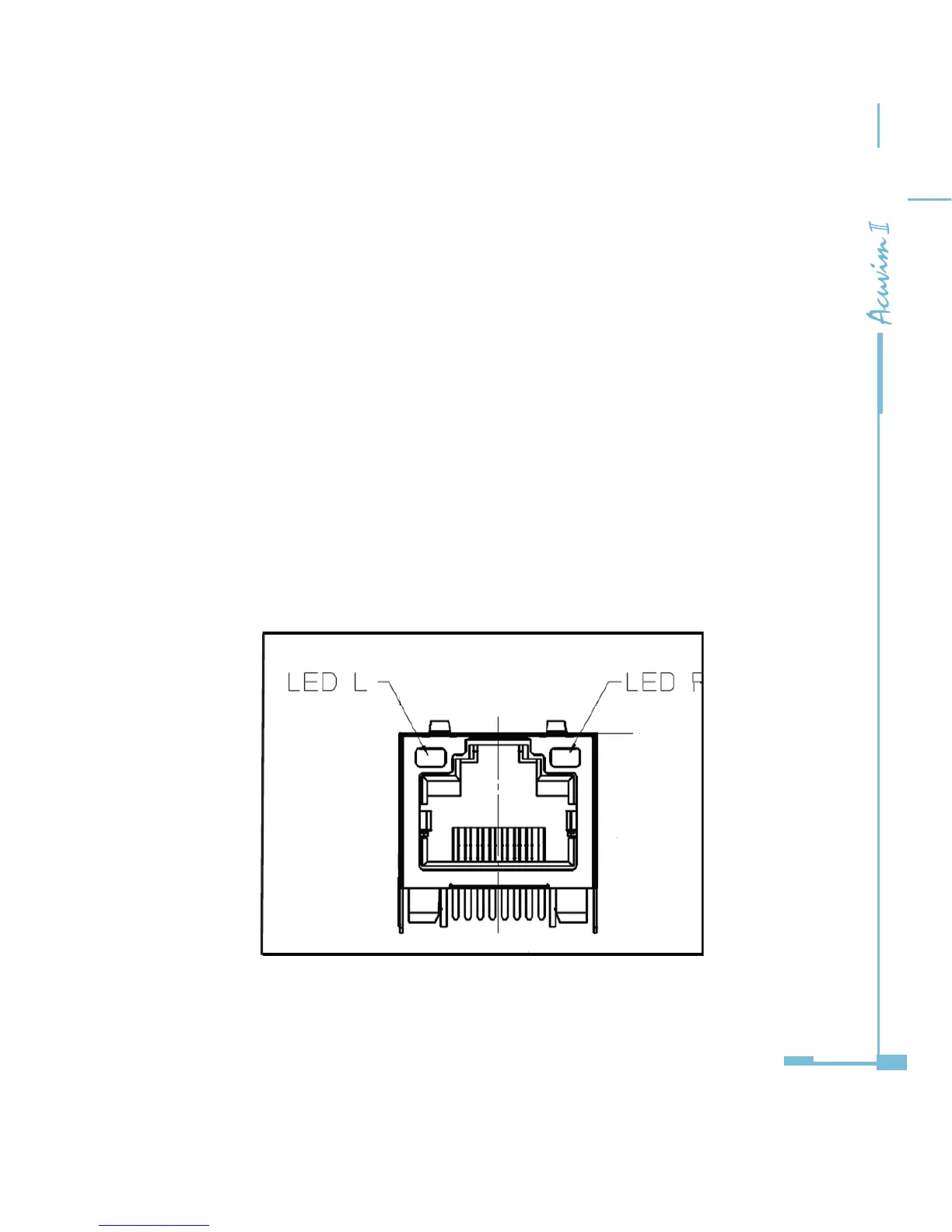

The BACnet/IP module uses a standard RJ45 connector to access the network.
The mechanical and electrical characteristics of the connectors comply with the
requirements of IEC 603-7.
Fig 5-61
