208
Series

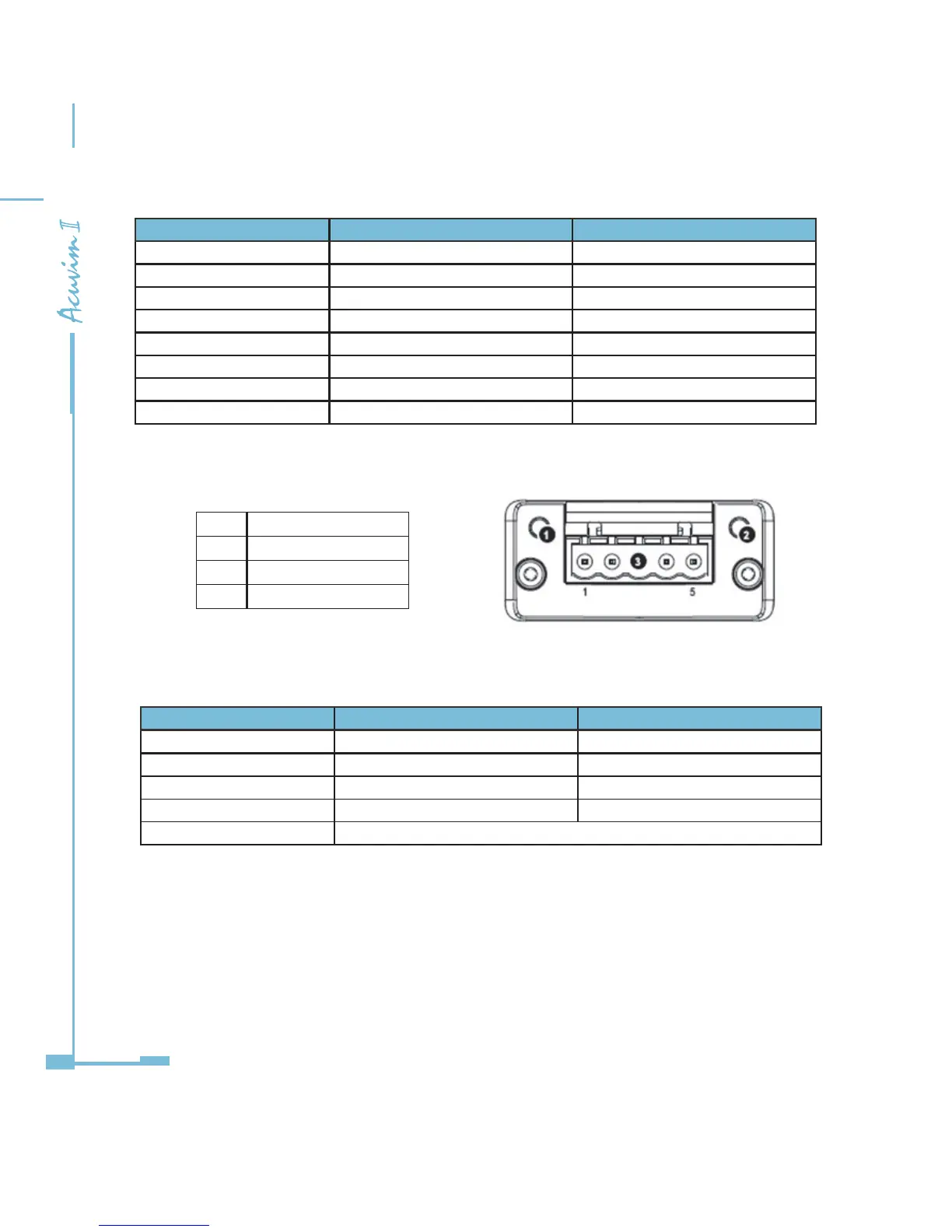

Table 5-34
Script ID Content
1 TX+ Tranceive Data+
2 TX- Tranceive Data-
3 RX+ Receive Data+
4 n/c Not connected
5 n/c Not connected
6 RX- Receive Data-
7 n/c Not connected
8 n/c Not connected
The BACnet MS/TP module uses a standard 485 connector to access the
network.
BACnet Connector
Table 5-35
3. Initializing Ethernet Module
1) BACnet Module Enable Set
When the module is rst used buy user, the information can be found by using
Pin number Name Description
1 Common Signal common
2 Data- Negative RS485 RxD/TxD
3 Shield Cable shield
4 Data+ Positive RS485 RxD/TxD
5 not used
# Item
1 Network Status LED
2 Module Status LED
3 BACnet connector
