the keys on the meter front. The following process shows how to configure
BACnet module settings by using the front panel:
The initial structure module parameter steps:
a) Pressing “H” key and “V/A” key simultaneously on the meter will go to the
menu selecting mode. Cursor “Meter” ashes in this mode.

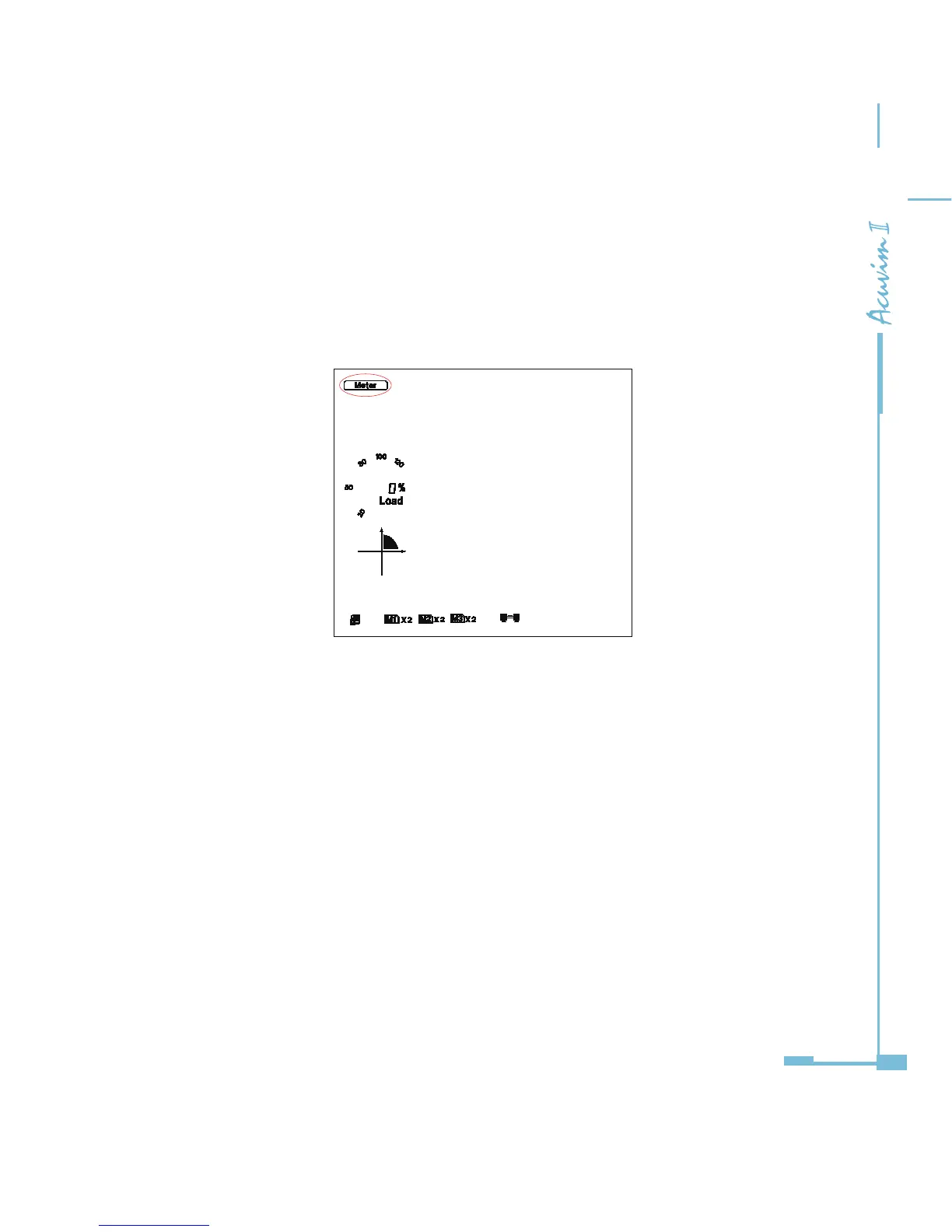

Fig 5-62
b) Press “P” key or “E” key to move the cursor to "Setting". Press “V/A” key to go
to the meter parameter setting mode. Device address page is the rst page of
“Setting” mode. It shows the Modbus address of the device for several seconds,
and then the screen goes to Access Code page. Press “V/A” key to go to the
parameter setting page. Press “P” key or “E” key to move the cursor to "SYS".
Press "V/A" key to go to the system setting page.
