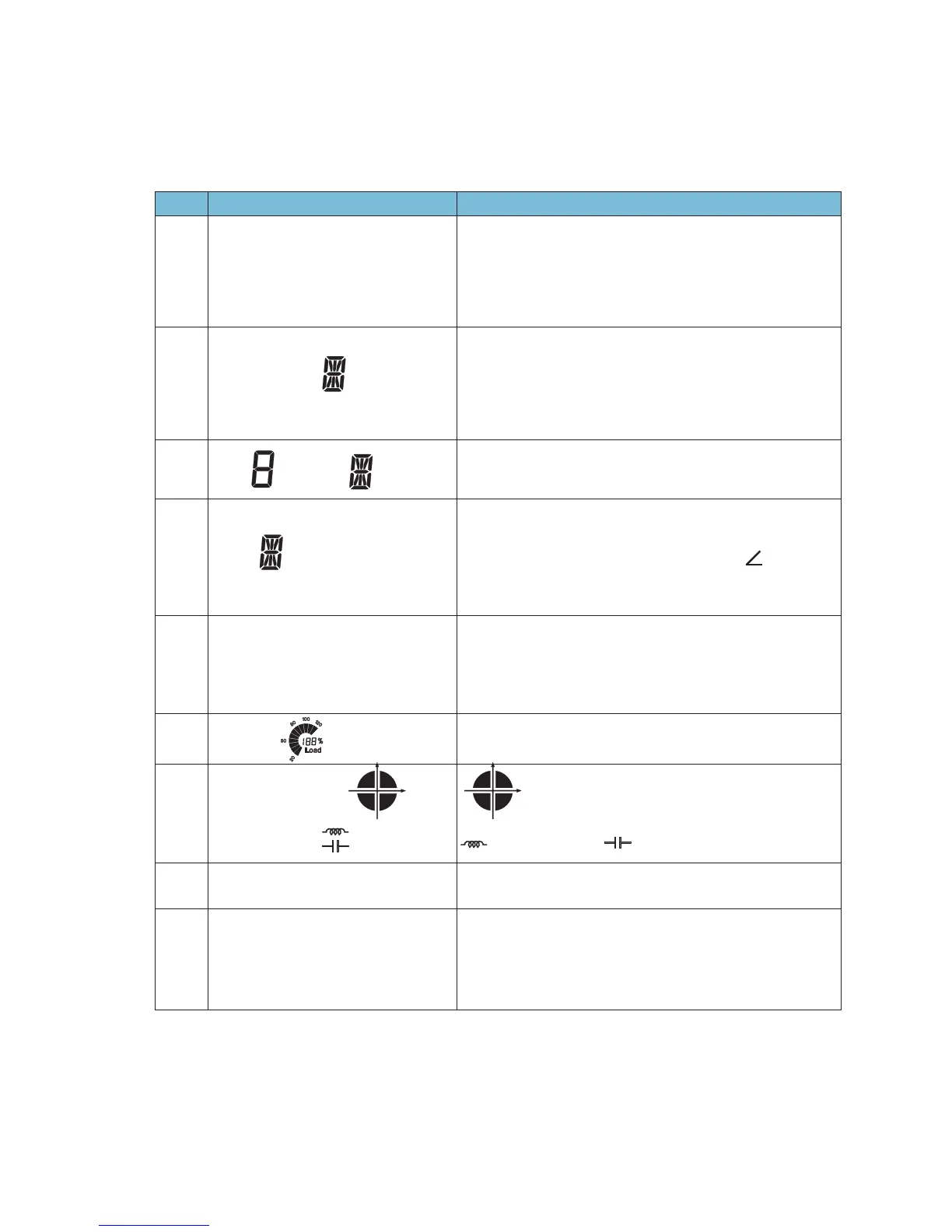

SN Display Description
1 Display mode indication
Shows different modes on the display area. “Meter”
for real-time measurement; “Max/Min” for statistic
data; “Demand” for power demand data; “Harmonic”
for harmonic data; “Setting” for parameters setting;
“Digital I/O” for expanded IO module data.
2
Four lines of “ ” digits in the
metering area
Main display area: displays metering data such as
voltage, current, power, power factor, frequency,
unbalance, phase angle,etc. Displays statistics such
as maximum and minimum, demand data, display
settings and expanded I/O data.
3 Four “ ” and ve “ ” digits
Displays energy data and real-time clock. Also used
for the setting mode and digital I/O mode display.
4 Three “ ” digits
Item Icons: “U” for voltage; “I” for current; “P” for active
power; “Q” for reactive power; “S” for apparent power;
“PF” for power factor; “F” for frequency; “ ” for phase
angles; “DMD” for demand; "Mxx" for expanded IO
module type; and display setting page number.
5 Unbalance, THD, TDD, MAX, MIN
Item Icons: “Unbalance” for unbalance of the voltage
and current; “THD” for total harmonics distortion;
“TDD” for total demand distortion; “MAX” for
maximum and “MIN” for minimum
6 Load rate
Displays the percentage of load current to the
nominal current.
7
Four quadrant icon
Load type icon
: quadrant of the system power
: inductive load; : capacitive load
8 1-2, 2-3, 3-1, avg, N
1, 2, 3 for 3 phase A, B, C; 1-2, 2-3, 3-1 for 3 phase line-
to-line AB, BC, CA; avg for average and N for neutral.
9 Energy icon: Imp, Total, Net, Exp
Imp: import energy
Exp: export energy
Total: absolute sum of Imp and Exp energy
Net: algebraic sum of Imp and Exp energy
