34
Note: When the meter is set to “2LL” or “3LL”, there is no phase voltage or neutral
current display. Therefore, only the third screen (line voltage & avg) and the
fourth screen (three phase current & avg) will be displayed.
When the meter is set to “1LN”, there are only phase A voltage and phase A
current display, without line voltages or other displays.
When the meter is set to “1LL”, there are no phase C voltage and phase C current
display.
b) Power, Power Factor and Frequency:
Press P to display power related data.
The screen will roll to the next page when P is pressed again. It will go back to
the rst screen if you press P at the last screen.

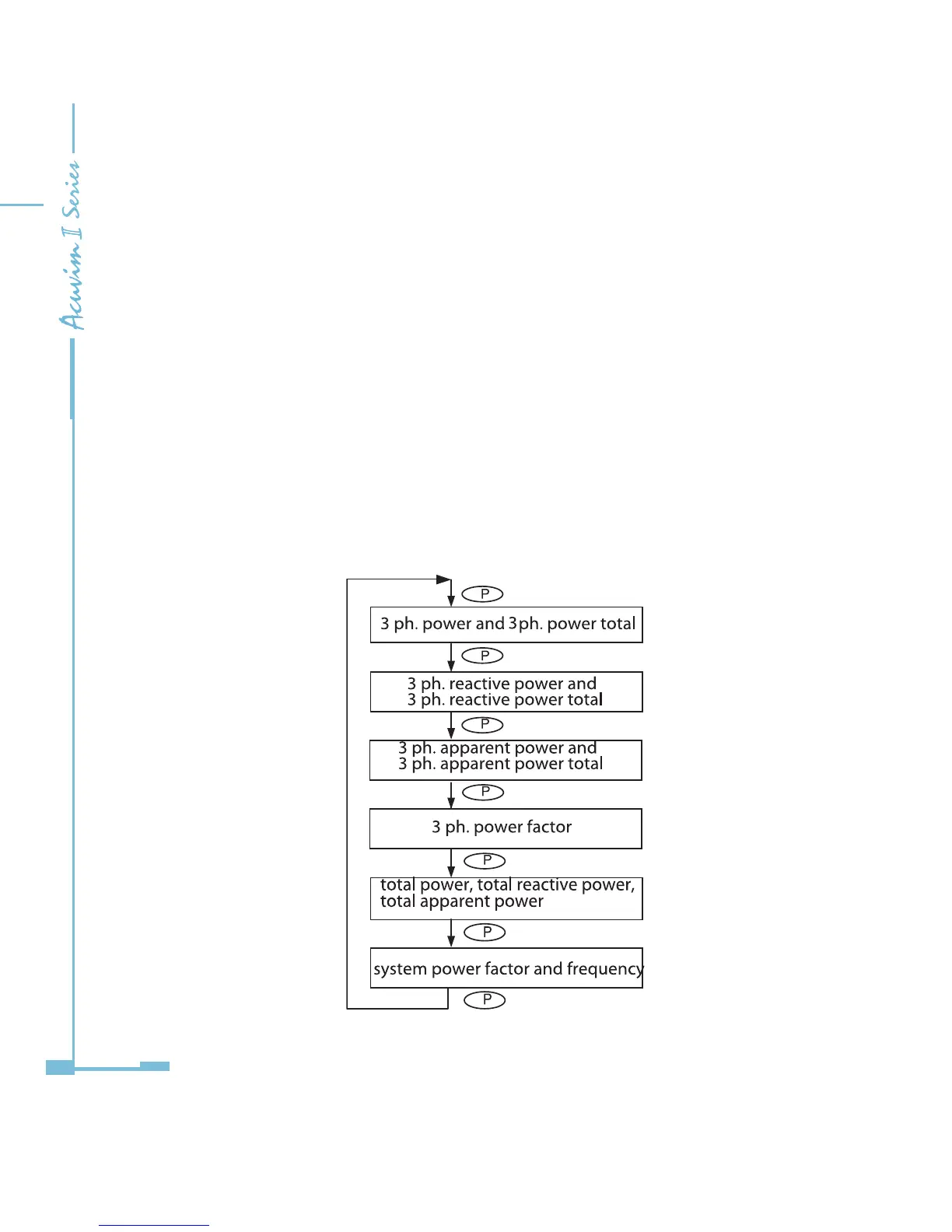

The following gure shows the sequence:
To Next Page
