35
Note: When the meter is set to “2LL” or “3LL”, only the fth screen (system power)
and the sixth screen (system power factor & frequency) will be displayed.
When the meter is set to “1LN”, there are only phase A power and phase A power
factor display.
When the meter is set to “1LL”, there are no phase C power and phase C power
factor display.
c) Phase Angles and Unbalance:
Press H to display phase angles and unbalance data. The screen will roll to the
next page when H is pressed again. It will go back to the rst screen if you press
H at the last screen.

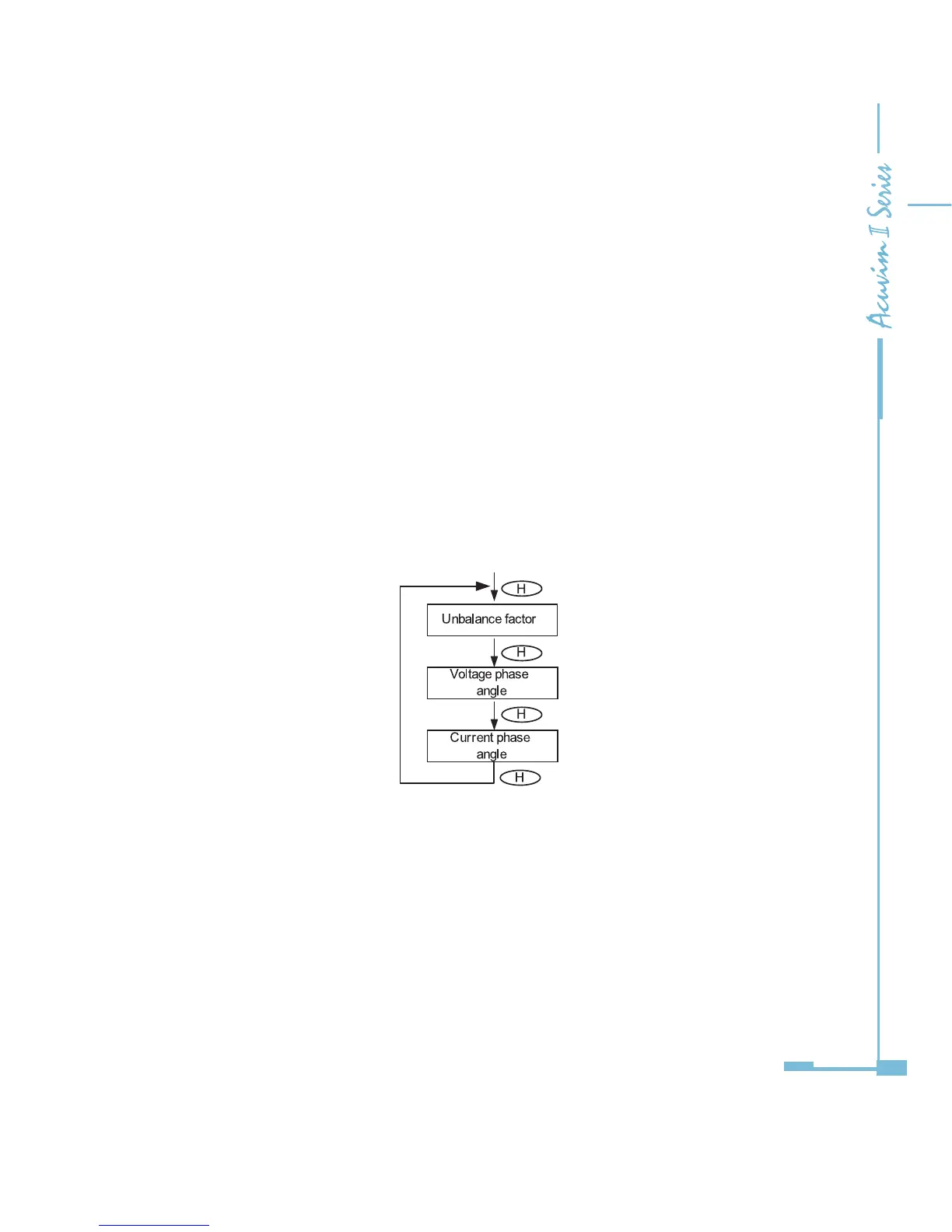

The following gure shows the sequence:
When using "2LL" or "3LL" wiring setting mode, voltage stands for line to line
voltage. Otherwise, voltage stands for line-to-neutral voltage.
When the meter is set to “1LN”, there is only phase A current to phase A voltage
angle display.
When the meter is set to “1LL”, there is no phase C voltage or current to phase A
voltage angle factor display.
