ODD (Optical Disk Drive) Module Removal 0
Prerequisite:
Battery Pack Removal
1. Remove one (1) screw (A) securing the ODD module in place (Figure 3-9).
2. Grasp the ODD bezel (B) to remove ODD module from ODD bay (Figure 3-9).

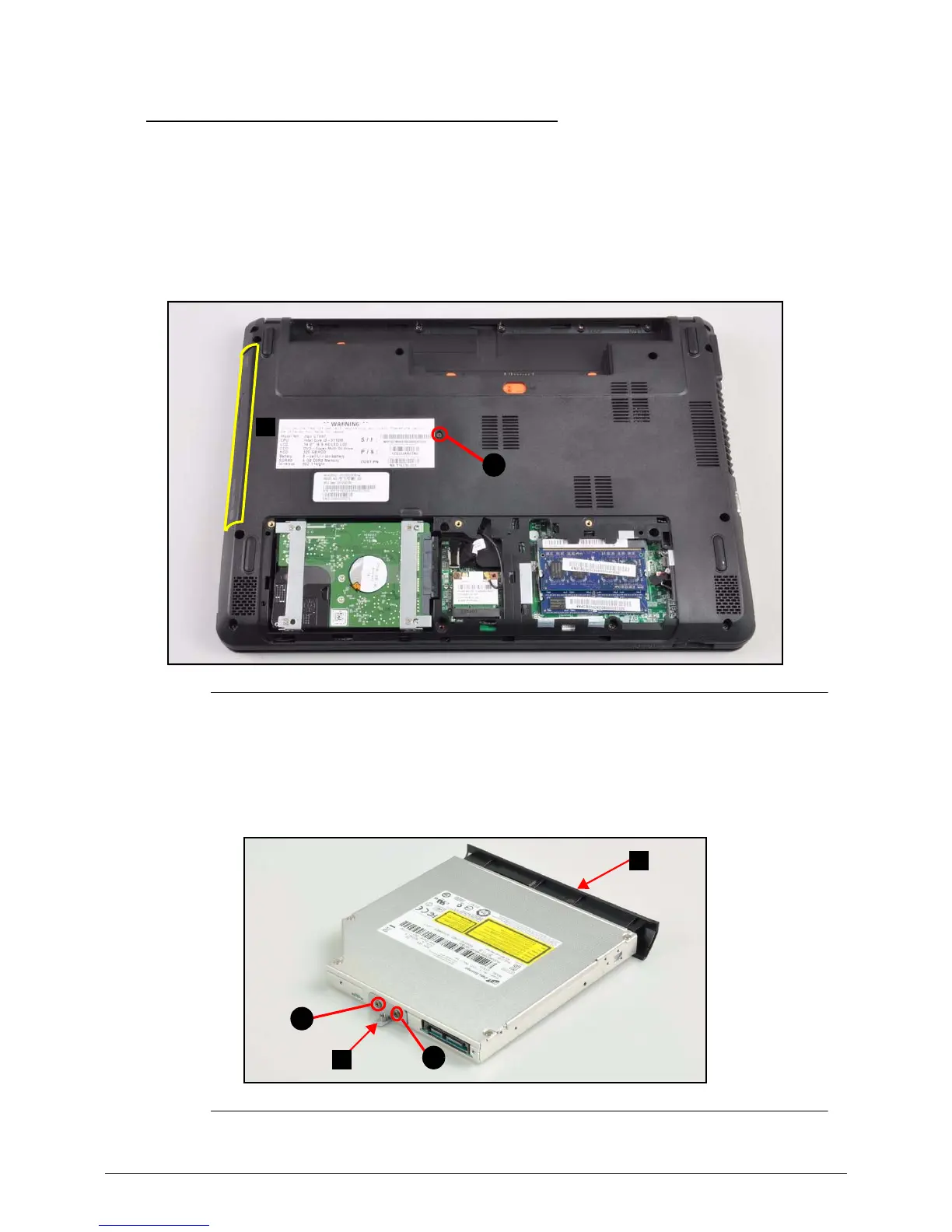

Figure 3-9. ODD Module
3. Remove two (2) screws (C) from ODD module (Figure 3-10).
4. Remove ODD bracket (D) from ODD module (Figure 3-10).
5. Remove ODD bezel (B) from ODD module (Figure 3-10).
Figure 3-10. ODD Module
B
A
D
B
C
C
