Acer Aspire E1-431 - CHAPTER 5 Jumper and Connector Locations; CHAPTER 6 FRU (Field Replaceable Unit) List; Exploded Diagrams

6-4 FRU (Field Replaceable Unit) List
Exploded Diagrams 0

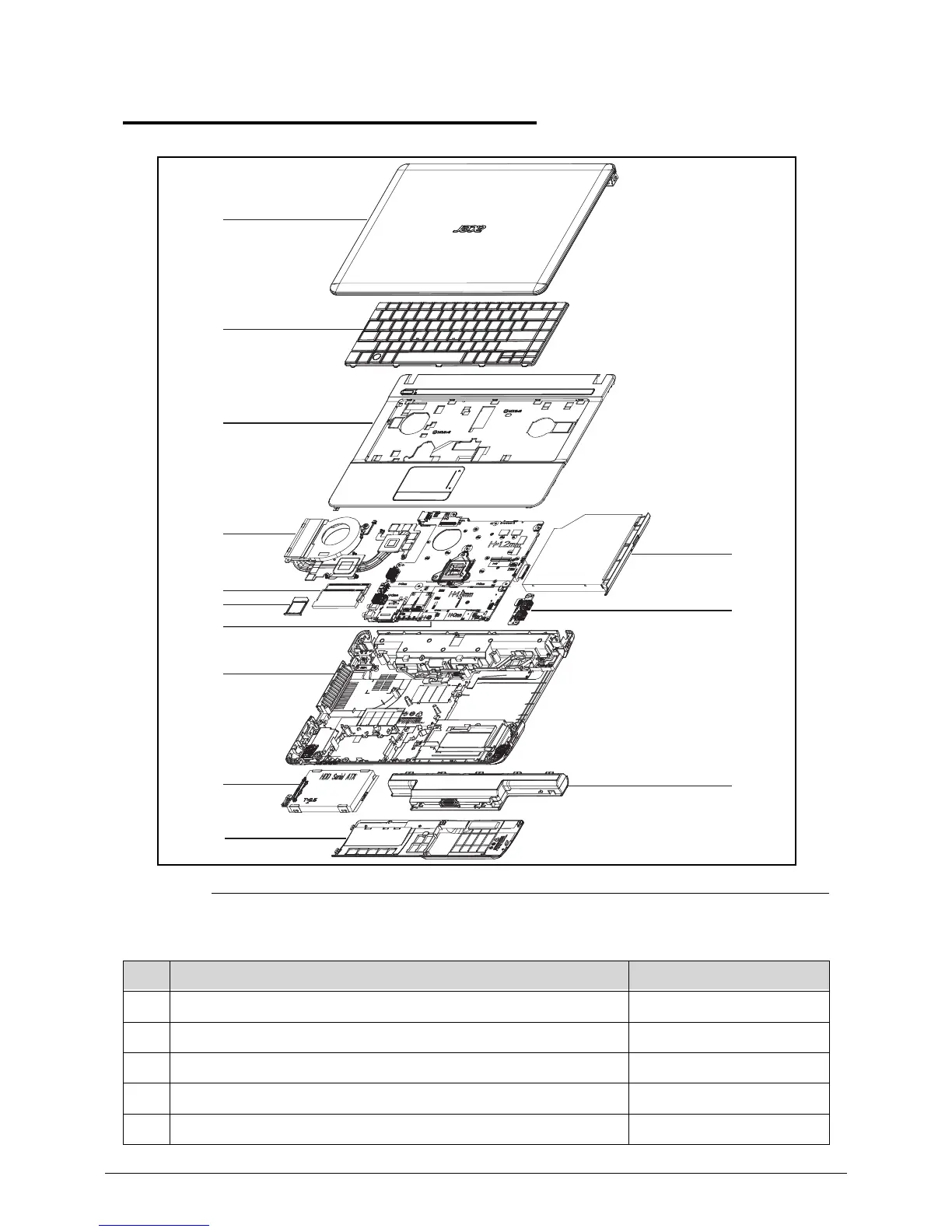

Figure 6-1. System Exploded Diagram
Table 6-1. System Exploded Diagram
No. Description Acer Part No.
1 LCD Assembly LZ.21000.177
2 Keyboard NK.I1413.002
3 Upper Case LZ.21000.178
4 Thermal Module Assembly 60.RYYN7.013
5 System Memory KN.2GB03.025
13
12
11
1
3
4
6
10
9
8
7
5
2
