3-38 Machine Maintenance Procedures
DC-in Jack Removal 0
Prerequisite:
LCD (Liquid Crystal Display) Module Removal
1. Find DC-in Jack Module (A) on the base assembly. Refer to Figure 3-36.
2. Remove DC-in Jack Module (A) from the base assembly.

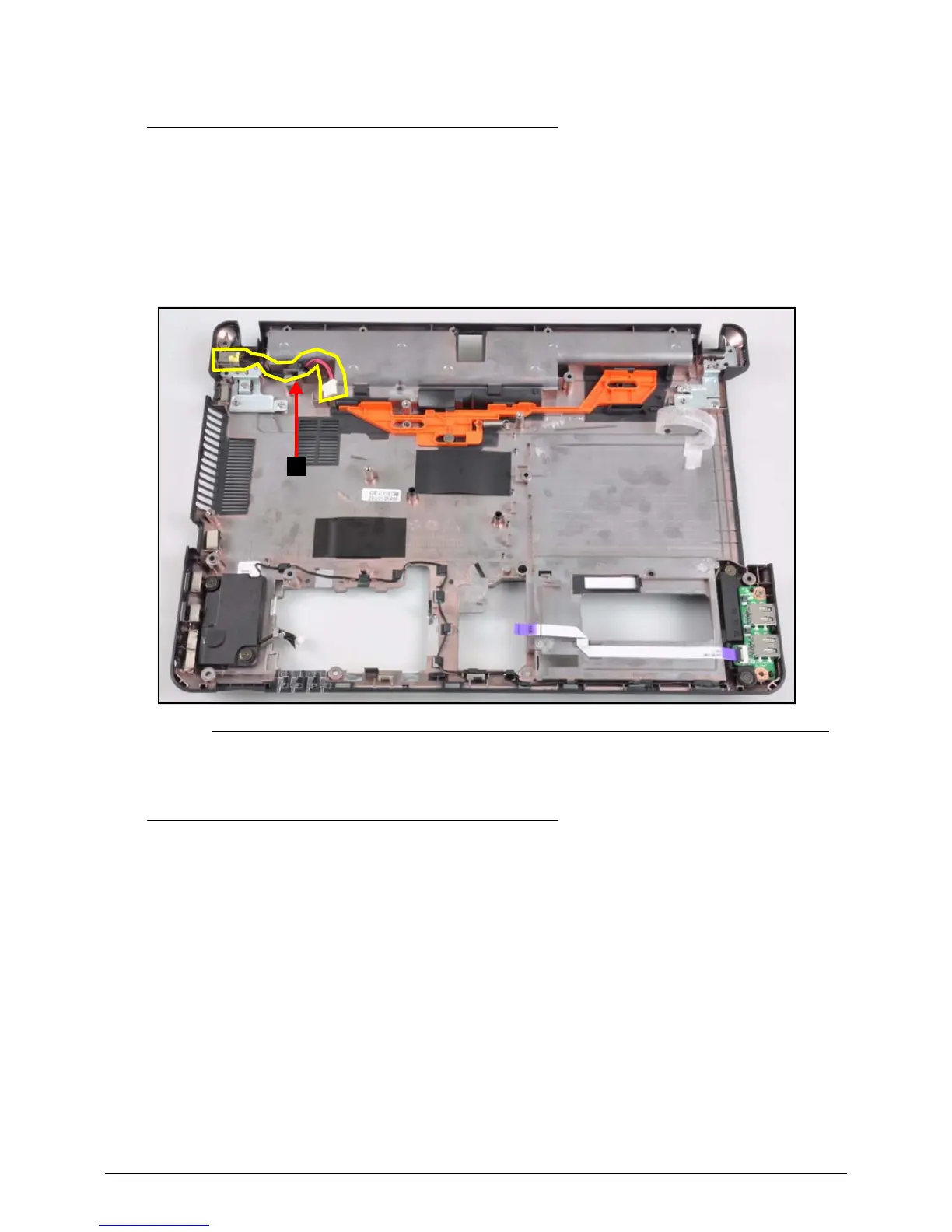

Figure 3-36. DC-in Jack Module
DC-in Jack Installation 0
1. Place DC-in Jack Module (A) on the base assembly. Refer to Figure 3-36.
2. Secure DC-in cable to the cable guide on the base assembly (Figure 3-36).
3. Install LCD Module.
