Acer Aspire E1-431 - Default Chapter; Mainboard Jumper and Connector Locations

Jumper and Connector Locations 5-3
Jumper and Connector Locations
Mainboard Jumper and Connector Locations 0

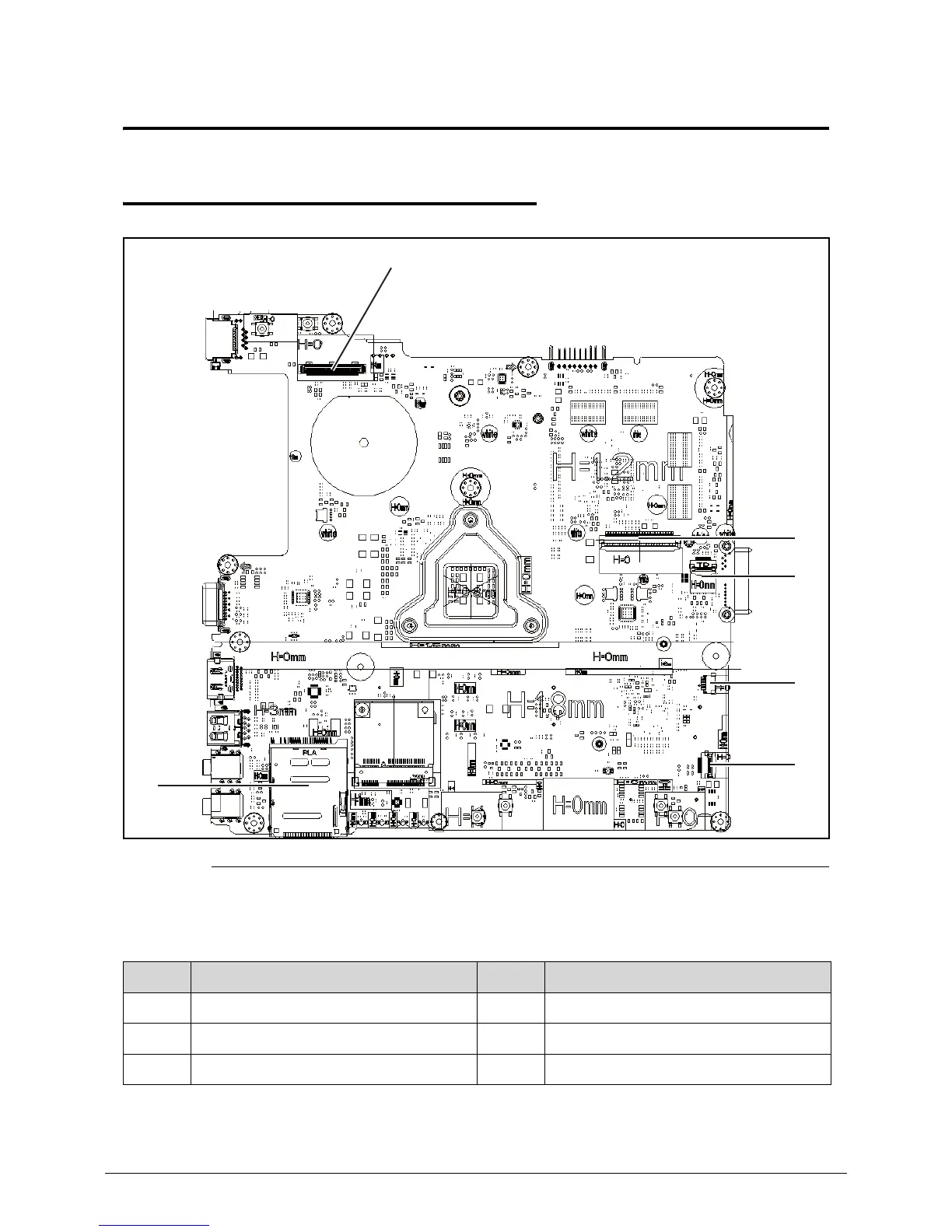

Figure 5-1. Mainboard Top
Table 5-1. Mainboard Top
Item Description Item Description
1 LVDS Connector 4 Bluetooth Connector
2 Keyboard Connector 5 USB Connector
3 Touchpad Connector 6 Cardreader Connector
1
2
3
4
5
6
