Acer Aspire E1-431 - Thermal Module Removal

3-32 Machine Maintenance Procedures
Thermal Module Removal 0
Prerequisite:
Mainboard Removal
1. Find the thermal module (C) on the mainboard. Refer to Figure 3-29.
2. Disconnect the thermal fan cable from mainboard connector (B) (Figure 3-31).
3. Loosen four (4) captive screws (A) in numerical order from one (1) to four (4). Refer to
Figure 3-31.
4. Remove thermal module from the mainboard.

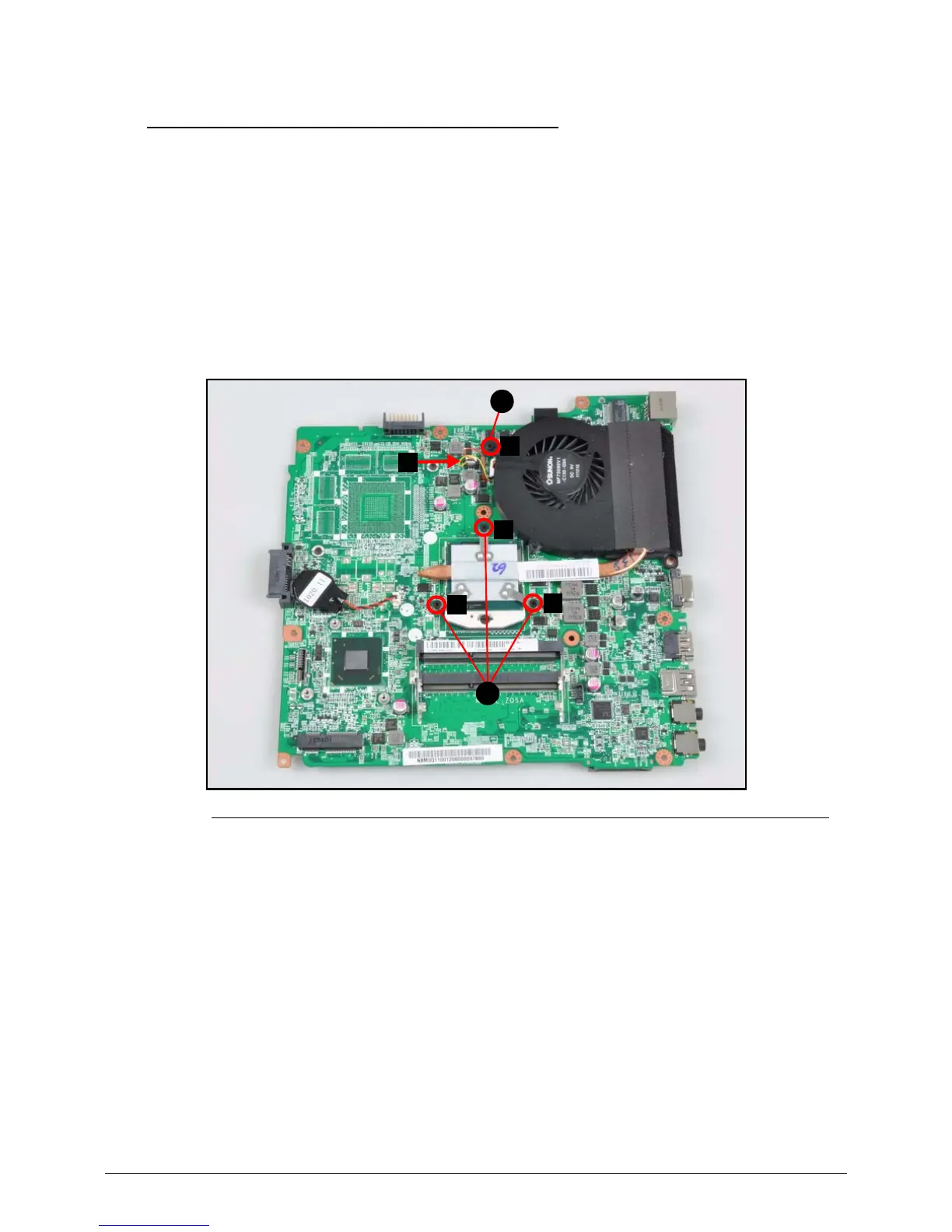

Figure 3-31. Thermal Module
1
2
3
B
A
4
A
