Acer Aspire E1-431 - HDD (Hard Disk Drive) Module Removal

Machine Maintenance Procedures 3-19
HDD (Hard Disk Drive) Module Removal 0
Prerequisite:
Base Door Removal

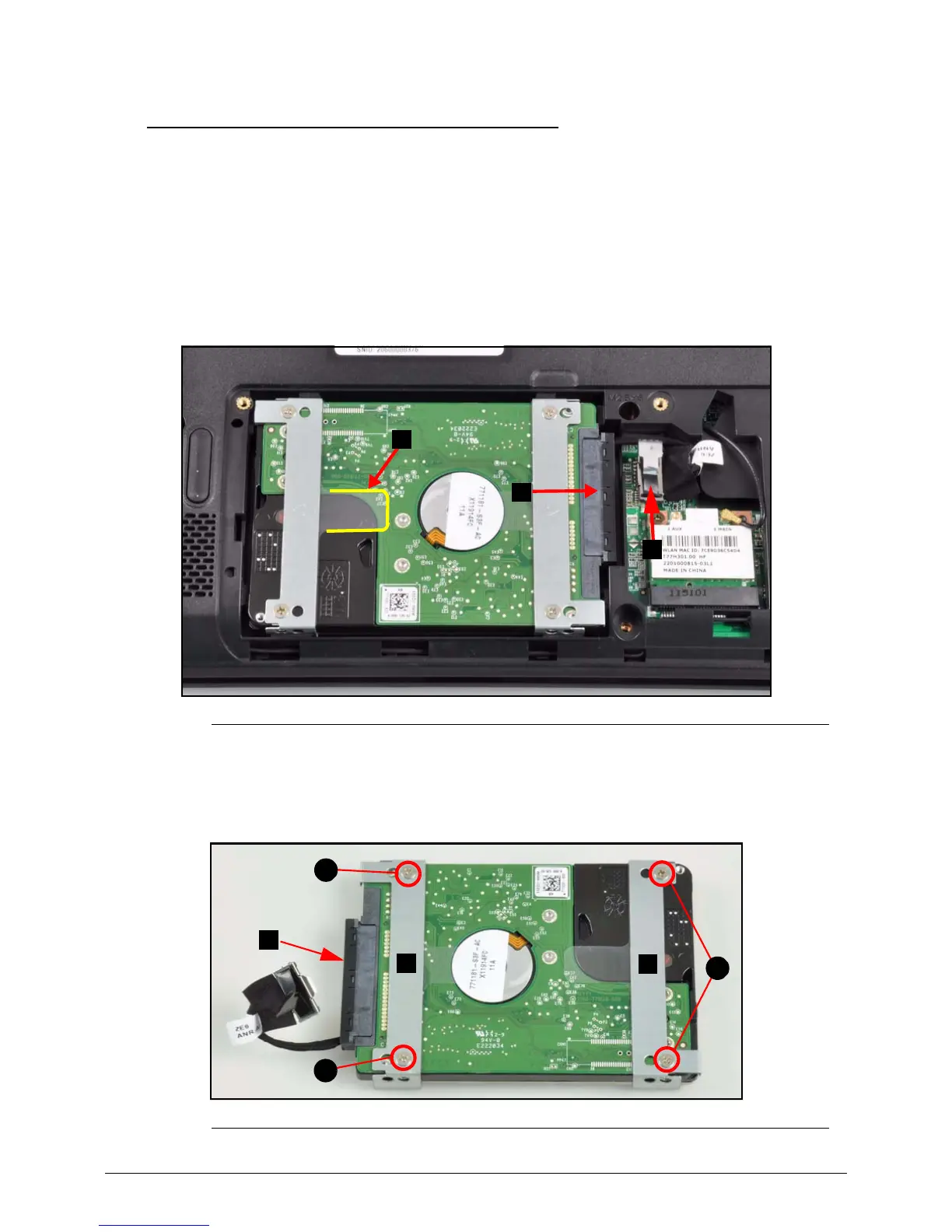

1. Find HDD module (A) on the base assembly as shown in Figure 3-11.
2. Dicsonnect HDD cable from the mainboard connector (D) (Figure 3-15).
3. Pull the tab (B) to release HDD module from mainboard connector (C). Refer to
Figure 3-15.
Figure 3-15. HDD Module
4. Remove HDD cable from HDD connector (E) (Figure 3-16).
5. Remove four (4) screws (F) from HDD bracket (G) (Figure 3-16).
Figure 3-16. HDD Module
D
C
B
E
G
F
F
G
F
