IO Board Installation 0
1. Place IO Board (B) on the base assembly. Refer to Figure 3-22.
2. Install and secure one (1) screw (C) to the IO board (Figure 3-22).
3. Connect IO board FPC (A) to IO board connector (D) (Figure 3-22).
4. Install Upper Case.

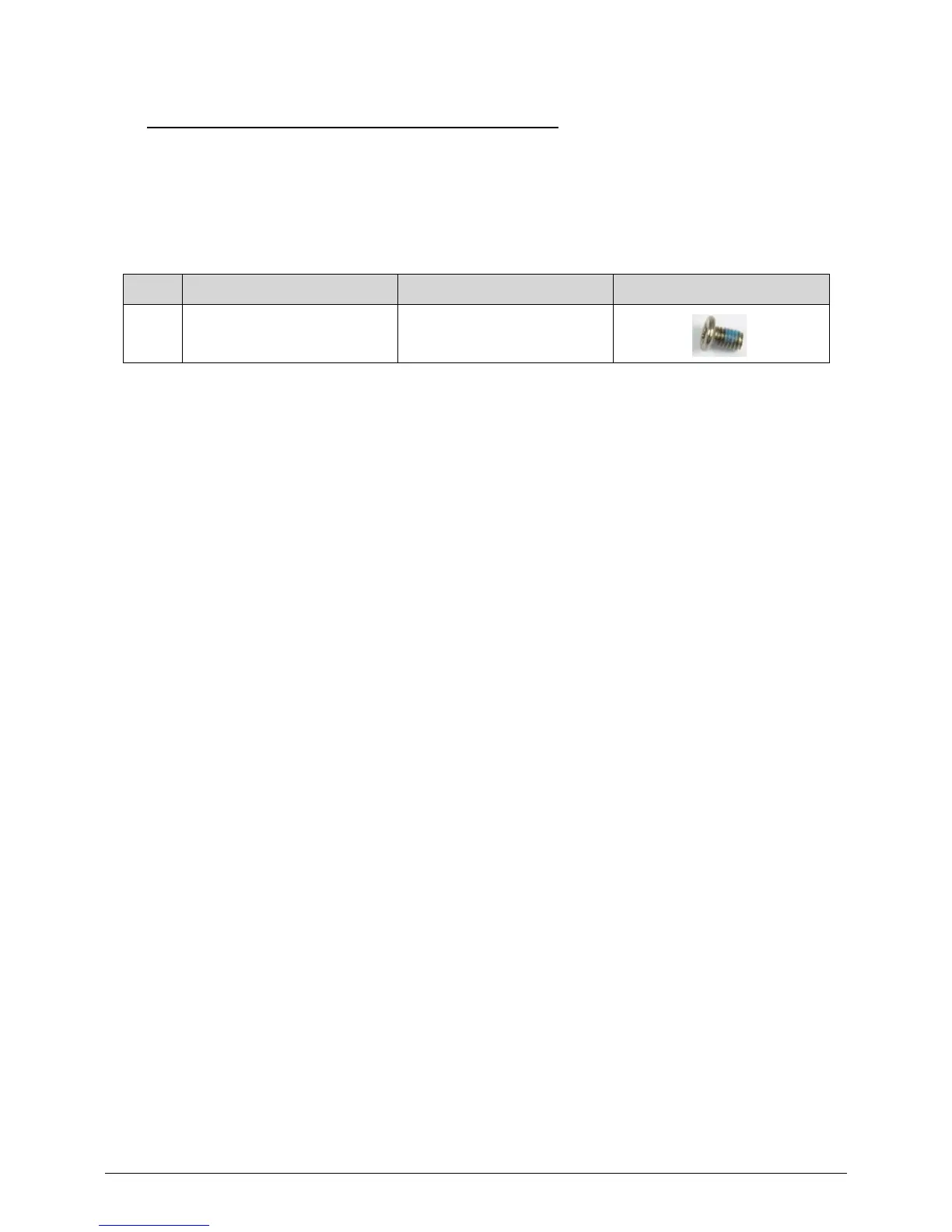

ID Size Quantity Screw Type
CM2.5*4 1
