Acer Aspire E1-431 - Support Bracket Removal; Support Bracket Installation

Machine Maintenance Procedures 3-39
Support Bracket Removal 0
Prerequisite:
LCD (Liquid Crystal Display) Module Removal
1. Find Support Brackets (B) on the base assembly. Refer to Figure 3-37.
2. Remove four (4) screws securing the support brackets in place (Figure 3-37).
3. Remove the support brackets from the base assembly.

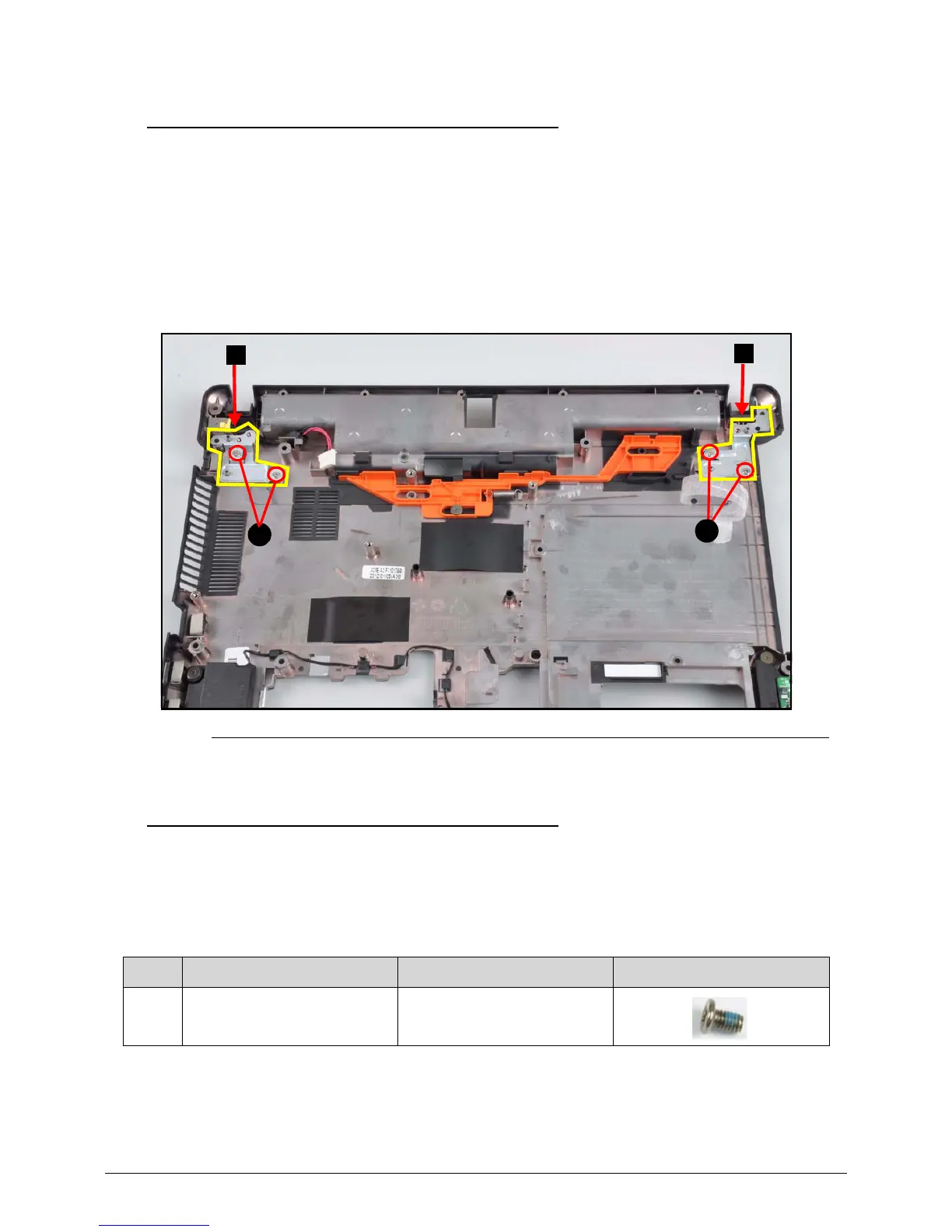

Figure 3-37. Support Brackets
Support Bracket Installation 0
1. Place the support brackets (B) on the base assembly. Refer to Figure 3-37
2. Install and secure four (4) screws to the support brackets (Figure 3-37).
3. Install LCD Module.
ID Size Quantity Screw Type
AM2.5*4 4
A
A
B
B
