6-6 FRU (Field Replaceable Unit) List

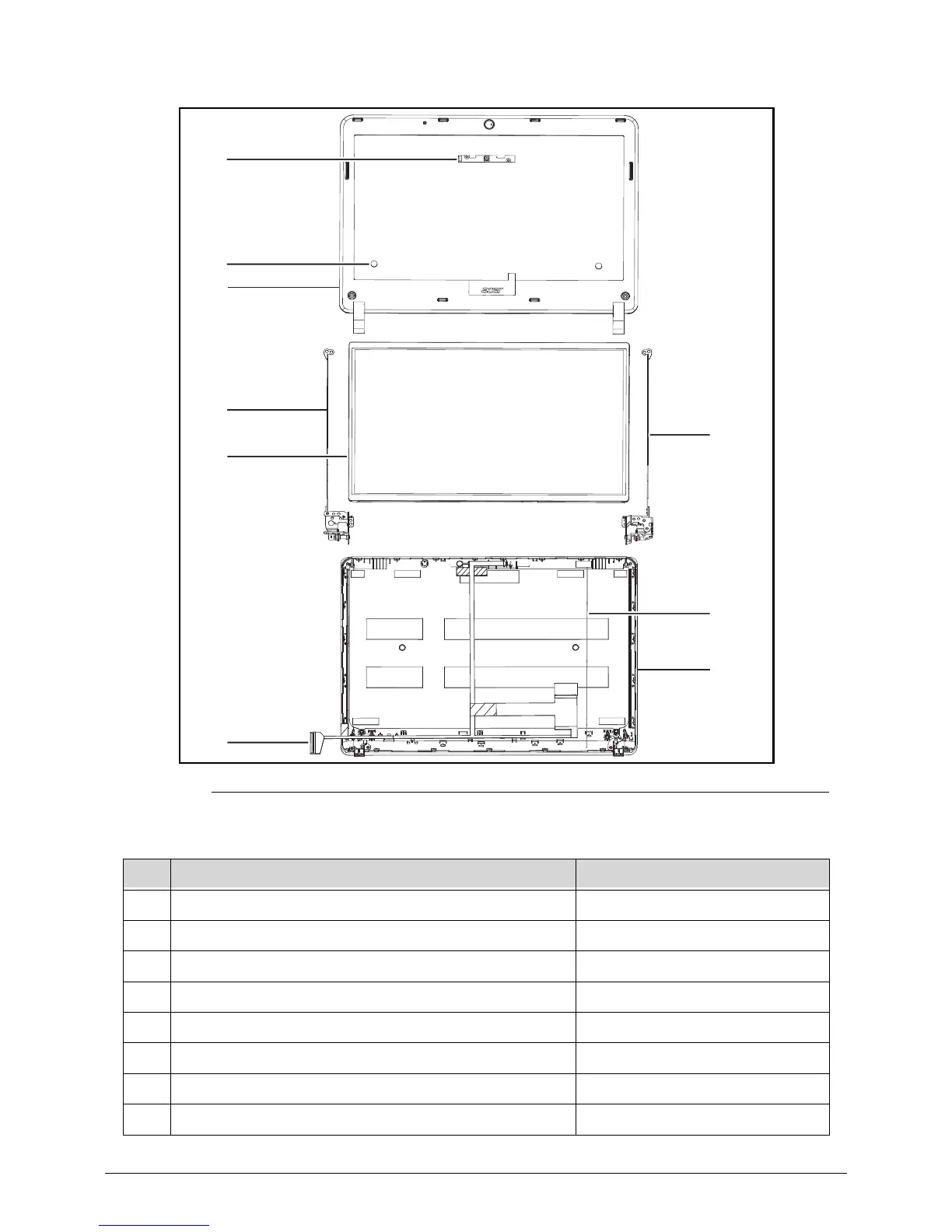

Figure 6-2. LCD Assembly Exploded Diagram
Table 6-2. LCD Assembly Exploded Diagram
No. Description Acer Part No.
1 Camera Module AM.21400.095
2 LCD Screw Mylar 47.R6Z07.003
3 LCD Bezel LZ.21000.009
4 LCD Bracket (Left) 33.RYYN7.003
5 LCD LED Panel LK.14005.010
6 LVDS Cable 50.RYYN7.006
7 LCD Cover LZ.21000.177
8 Antenna LZ.23500.006
1
2
3
7
8
9
4
5
6
