e-mill 3VKH
A
B
C
D
E
F
Min.
56"
11 1/4"
2 1/2"
1
4"
1422mm
285mm
64mm
102mm
Max.
94"
79"
35 1/4"
22 1/2"
18"
27"
2388mm
2007mm
895mm
572mm
533mm
686mm

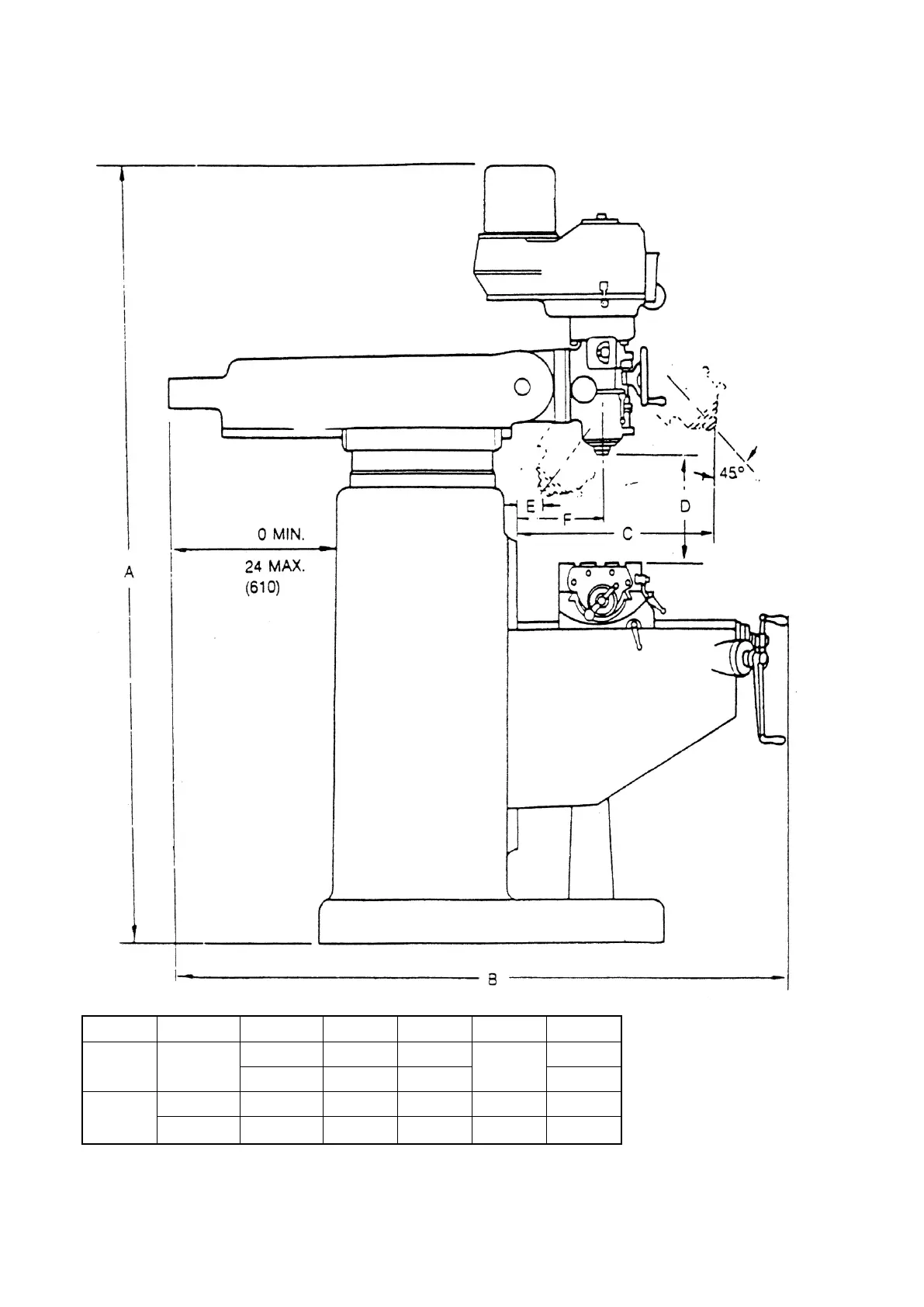

Figure 3. Principal Dimension of 3VKH
