Chapter 3 33
Removing the Heat Sink Fan Assembly

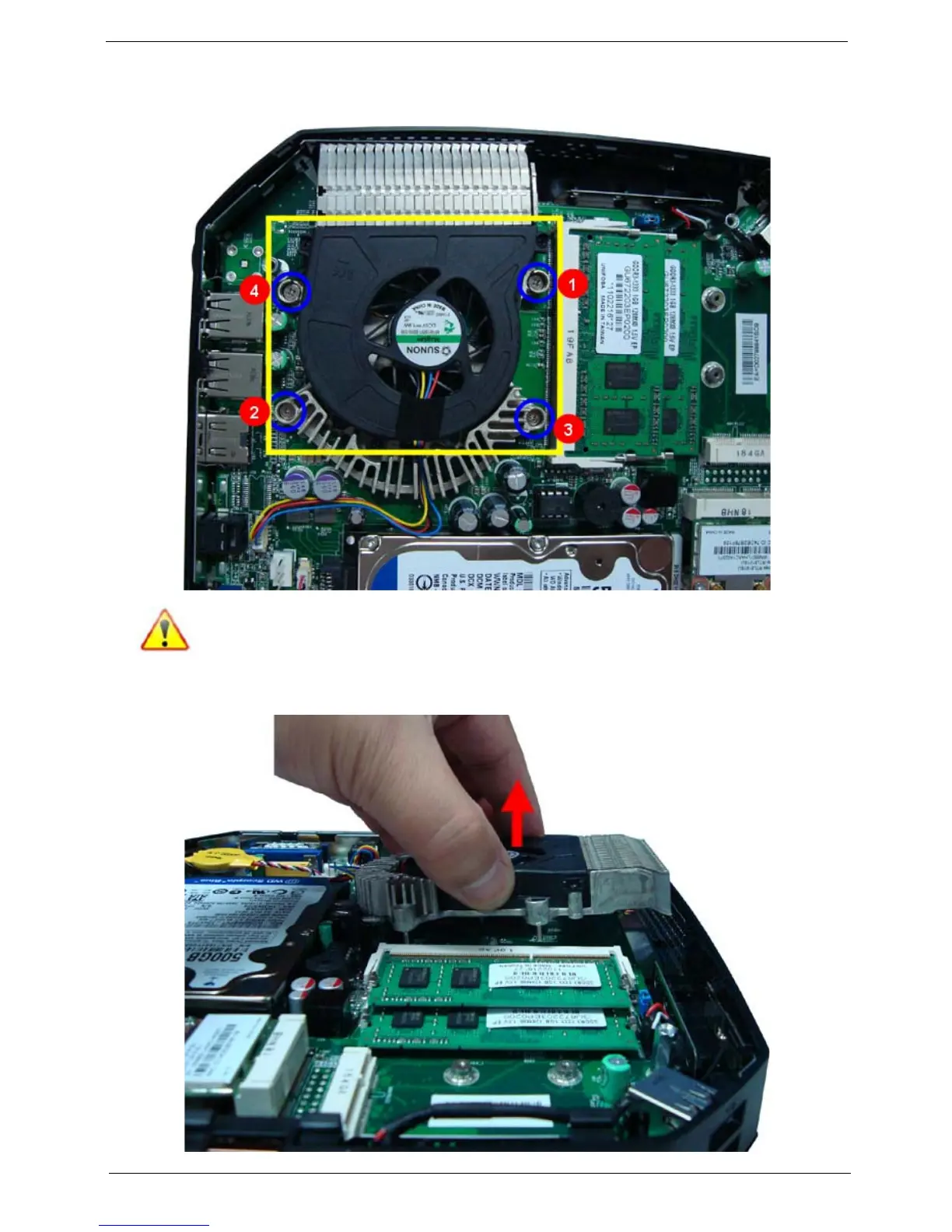

1. Use a screwdriver to loosen the four screws on the heat sink as shown below.
Note:CPU Fan has been highlighted with the yellow rectangle as above image shows.Please
detach the CPU Fan and follow local regulations for disposal.
2. Lift the heat sink fan assembly away from the main board.
