65 Chapter 6

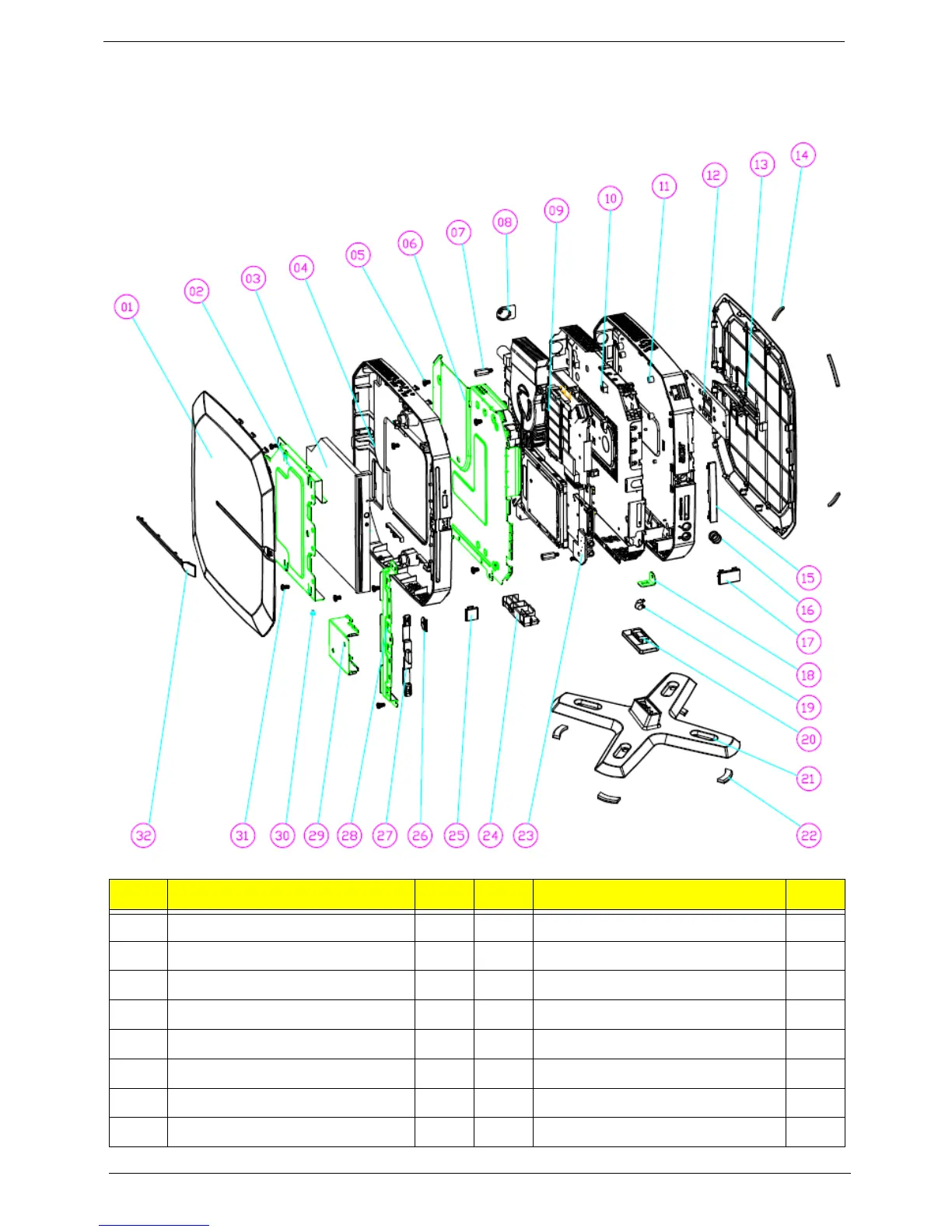

Revo 70 Exploded Diagram
NOTE: This section will be updated when more information becomes available.
ITEM NAME
Q’TY
ITEM NAME
Q’TY
1 MERLOT-UP-COVER 1 17 MERLOT-POWER-BTN 1
2 ODD- BRACKET 1 18 MERLOT-KINGSINGTOLOCK-METAL 1
3 SLIM ODD_DEVICE 1 19 MERLOT-POWER-LENS 1
4 MERLOT-ODD-BASE-COVER 1 20 MERLOT-FOOT-CONSUMER 1
5SCREW M3×5 921MERLOT-FOOT 1
6 SHEETMETAL-TOP 1 22 MERLOT-FOOT-RUBBER-1 4
7 STANDOFF 4 23 MERLOT-AUDIO-BOARD 1
8 TV-COVER 1 24 MERLOT-FOOT-COVER 1
