Installing the Sheet Metal

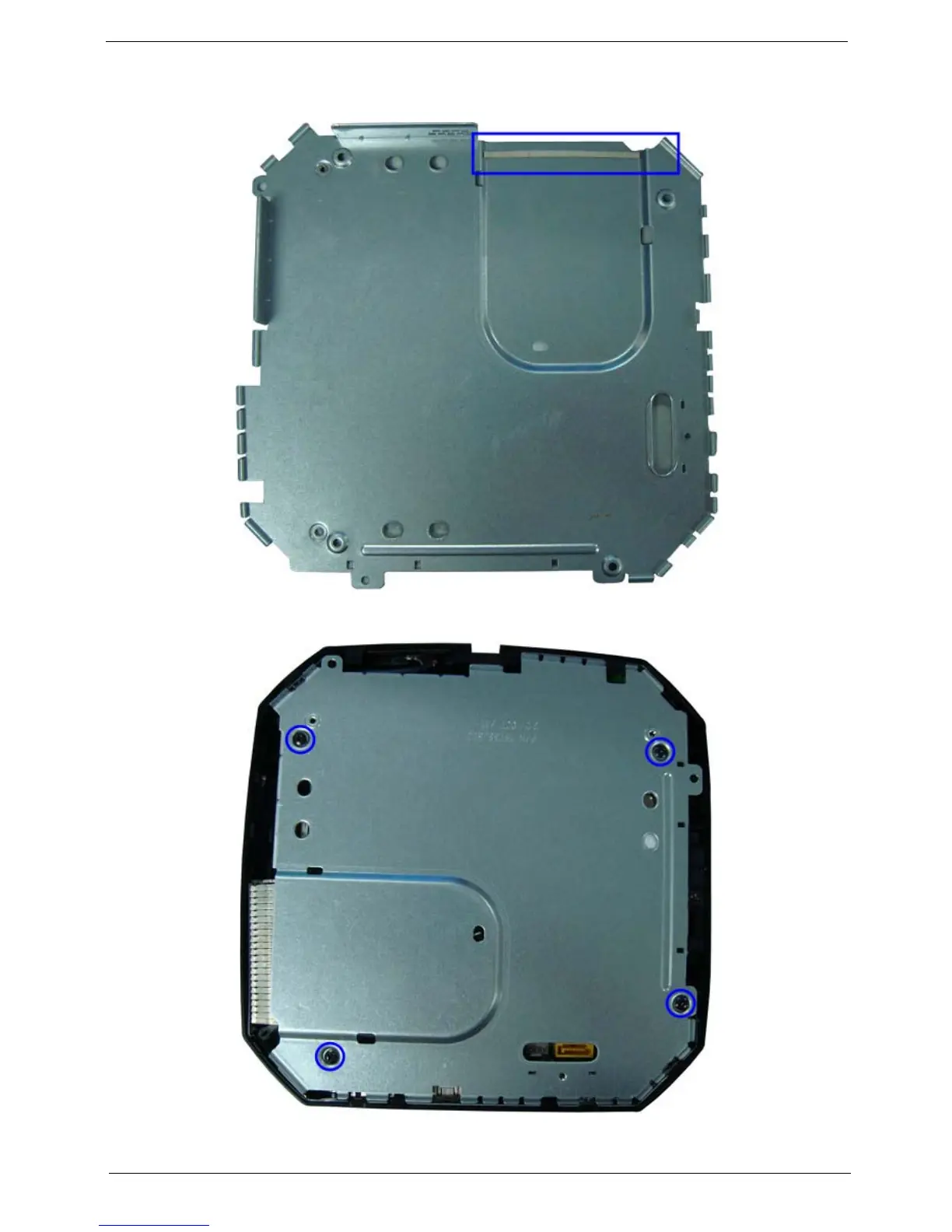

1. Paste 1pc gasket on sheet metal as below picture shown.
2. Position the sheet metal on top of the mianboard, making sure the screw holes on the sheet metal are
aligned with the those on the mainboard, then secure the sheet metal using the four screws.
