Chapter 3 39
Removing the Main Board

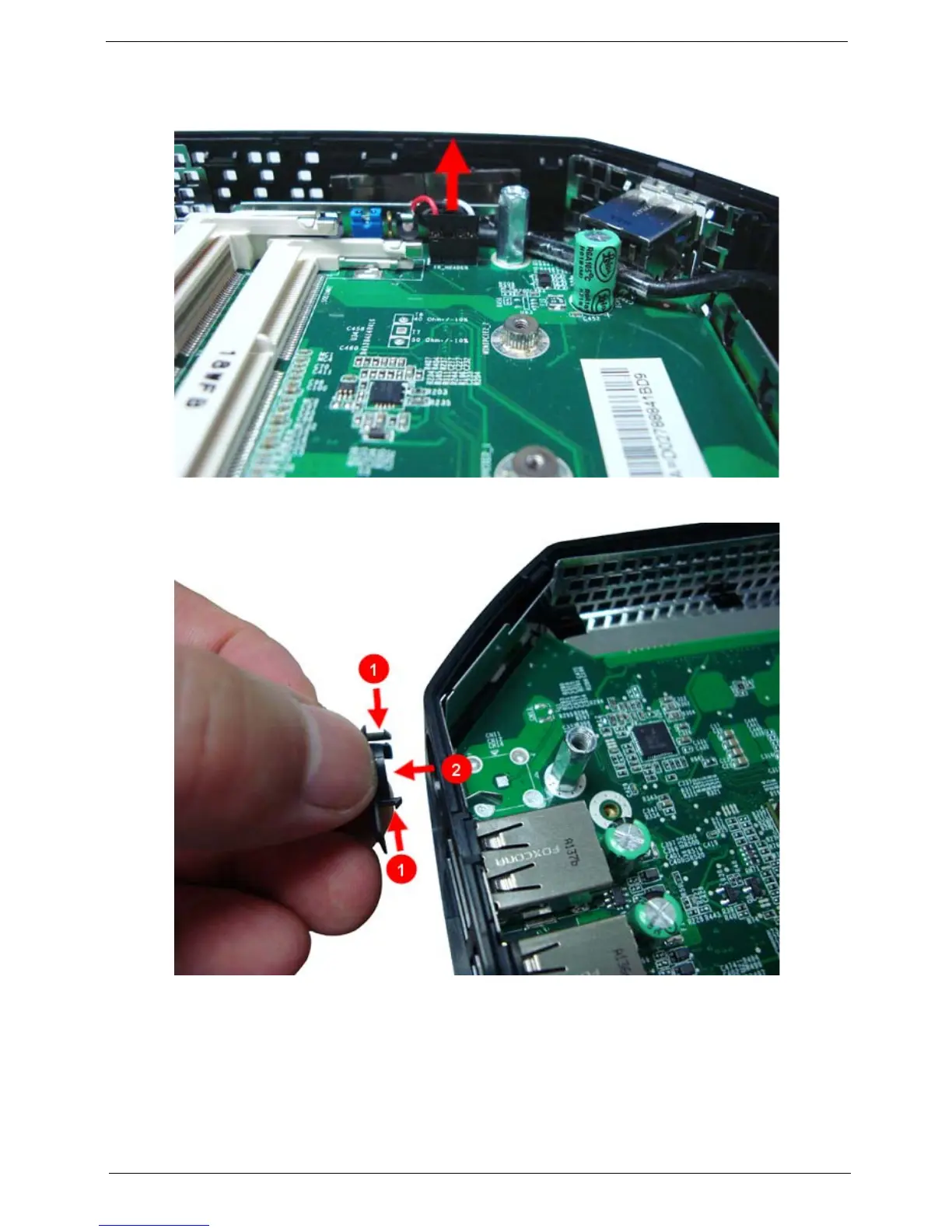

1. Disconnect the IR Sensor cable from main board connector.
2. Release the two locking tabs (1) and gently pull the cover out (2).
