36 Chapter 3

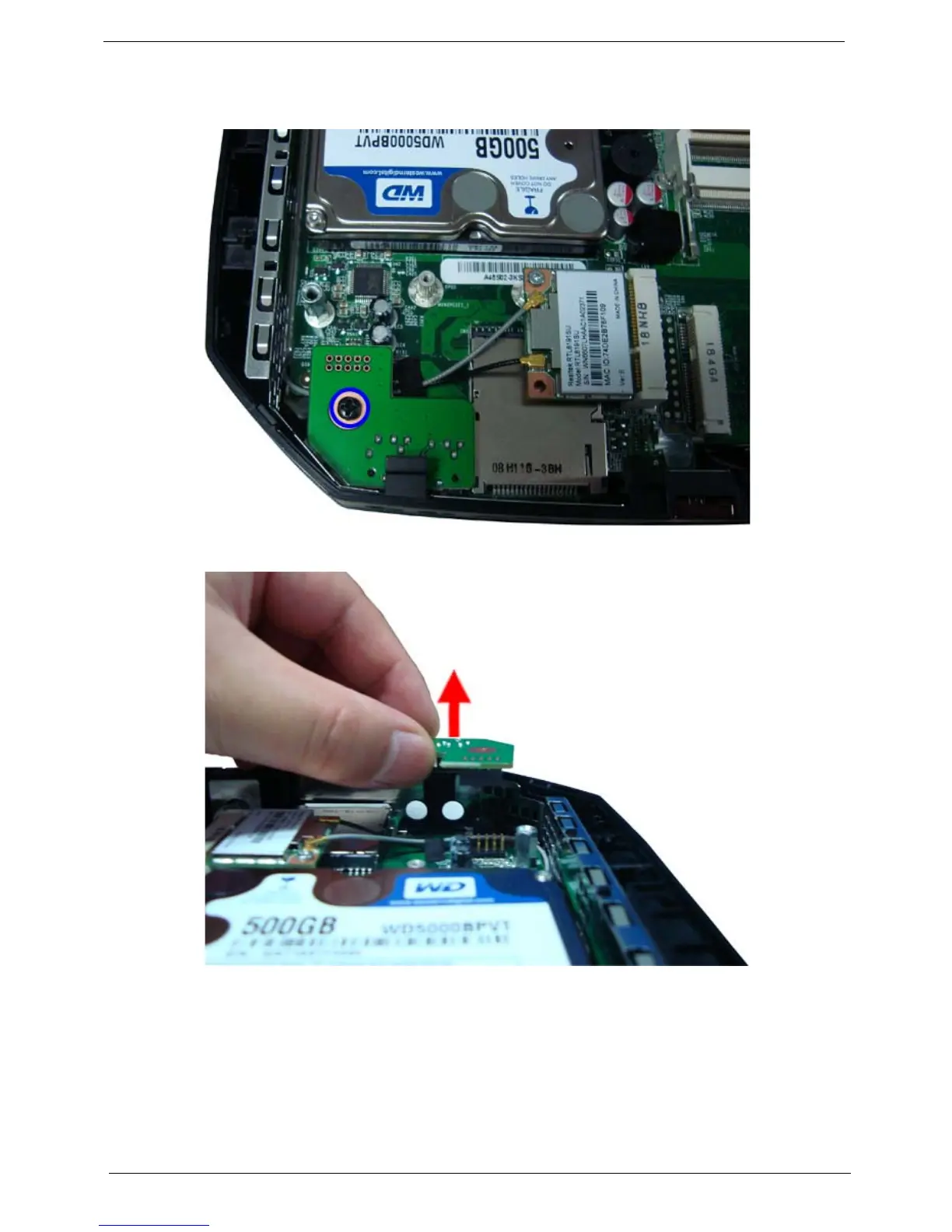

Removing the Daughter Board
1. Remove the screw securing the daughter board.
2. Lift the daughter board away from the main board.
