Chapter 3 37

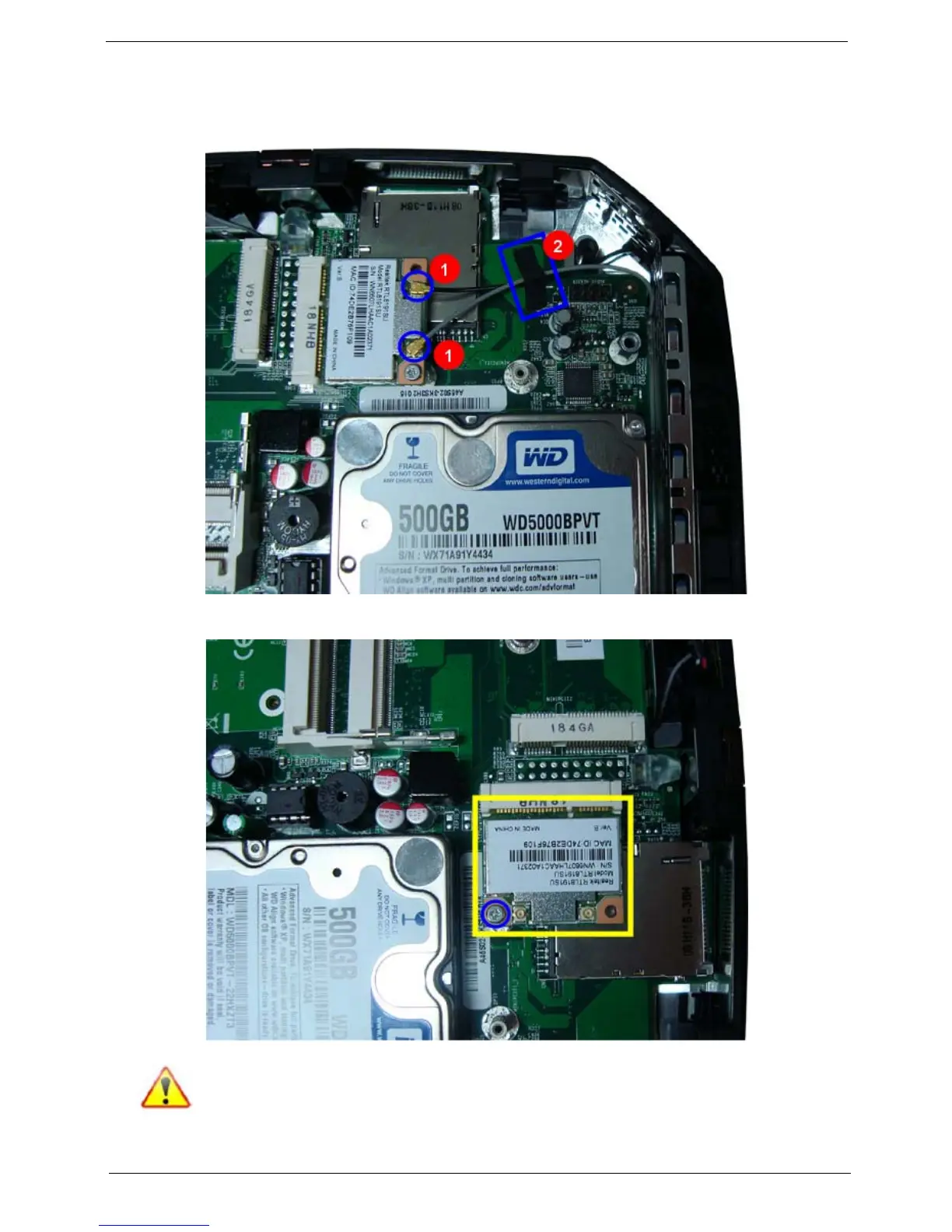

Removing the Wireless LAN Card
1. Remove the wireless LAN antenna cable from connector of wireless LAN card(1) and detach the
adhesion tape(2).
2. Remove the screw securing the wireless LAN card.
Note:Circuit boards >10 cm² has been highlighted with the yellow rectangle as above image shows. Please
detach the Circuit boards and follow local regulations for disposal.
