Acer RL70 - Connector Pin Definition

59 Chapter 5

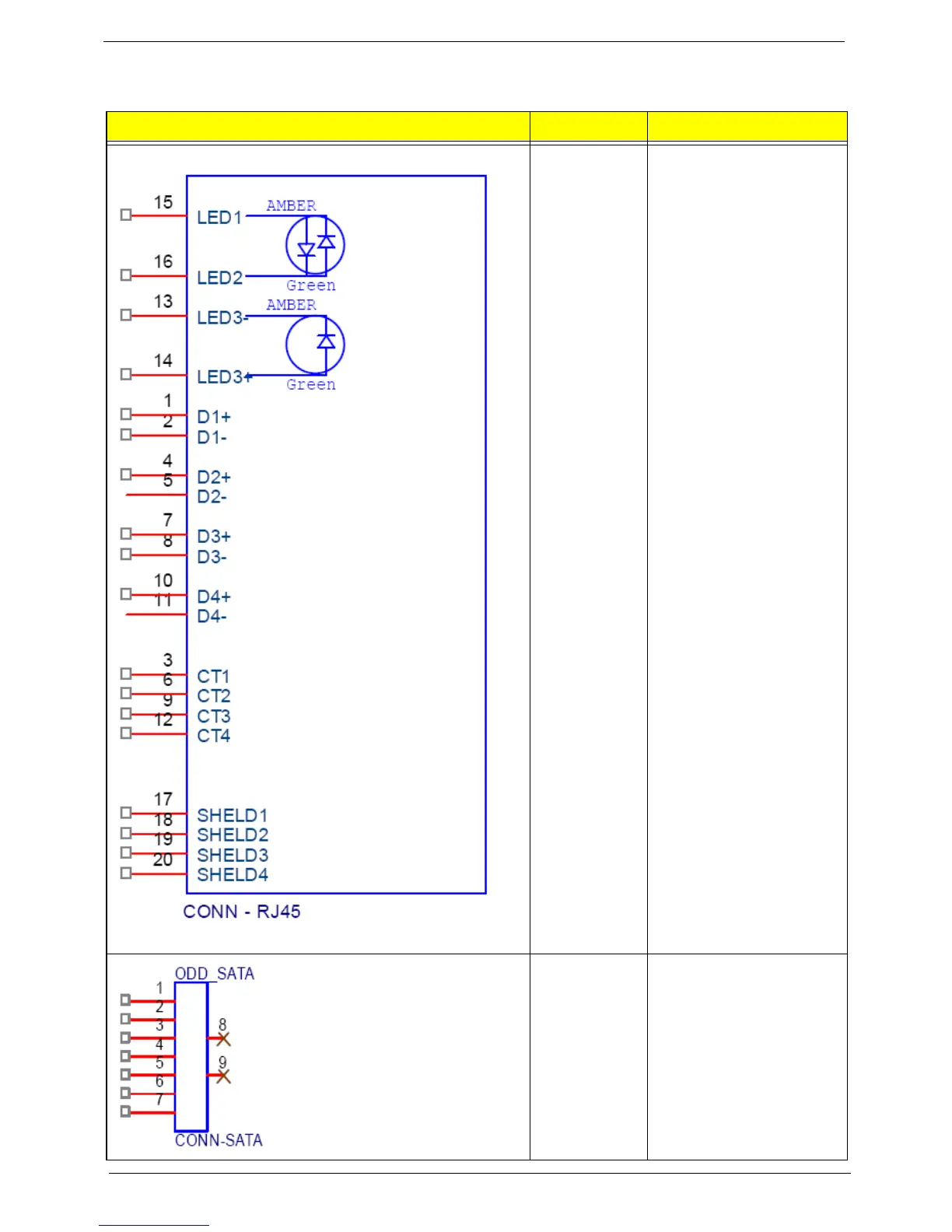

Connector Pin Definition
Header Name Function Definition
LAN LAN Conn 1:MDI_0
2: MDI_0J
3: Bypass to GND
4: MDI_1
5: MDI_1J
6: Bypass to GND
7: MDI_2
8: MDI_2J
9: Bypass to GND
10: MDI_3
11: MDI_3J
12: Bypass to GND
13: LAN_LED3/EEDO
14: LAN_CON_LED
15: LAN_LED0
16: LAN_LED1/EESK
17 18 19 20: GND
ODD_SATA 1: GND
2: SATA_TXP1_C
3: SATA_TXN1_C
4: GND
5: SATA_RXN1_C
6: SATA_RXP1_C
7: GND
