Chapter 5 58

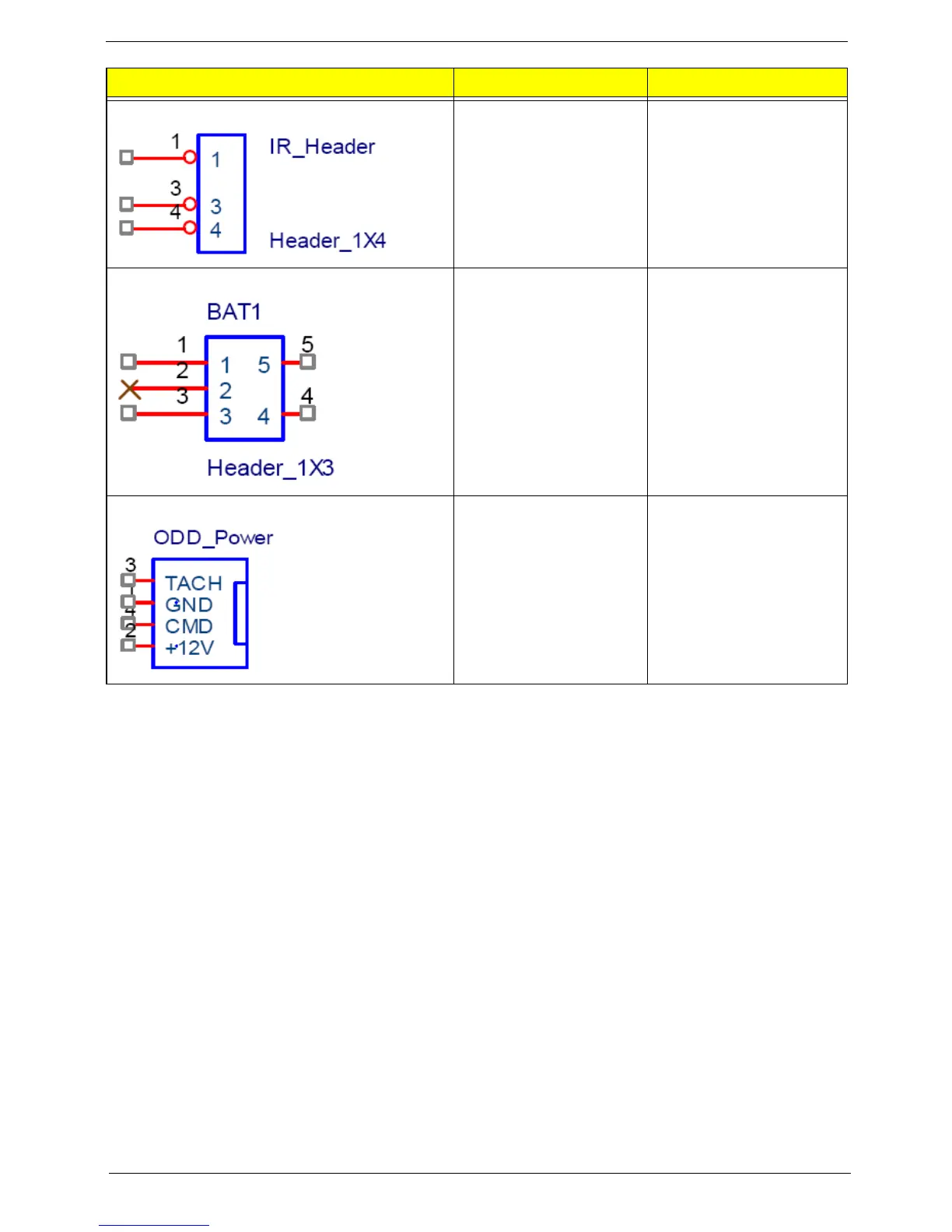

IR_Header Infrared Receiver header 1: 3D3V_ALW
3: CIRRX
4: GND
Battery Header Battery Header 1: GND
2: NC
3: VBAT
4~5: GND
ODD Power Header ODD Power Header 1: VCC5_SATA_ODD
2: GND
3: VCC5_SATA_ODD
4: GND
Header Name Function Definition
