Acer RL70 - Revo 70 FRU List

67 Chapter 6

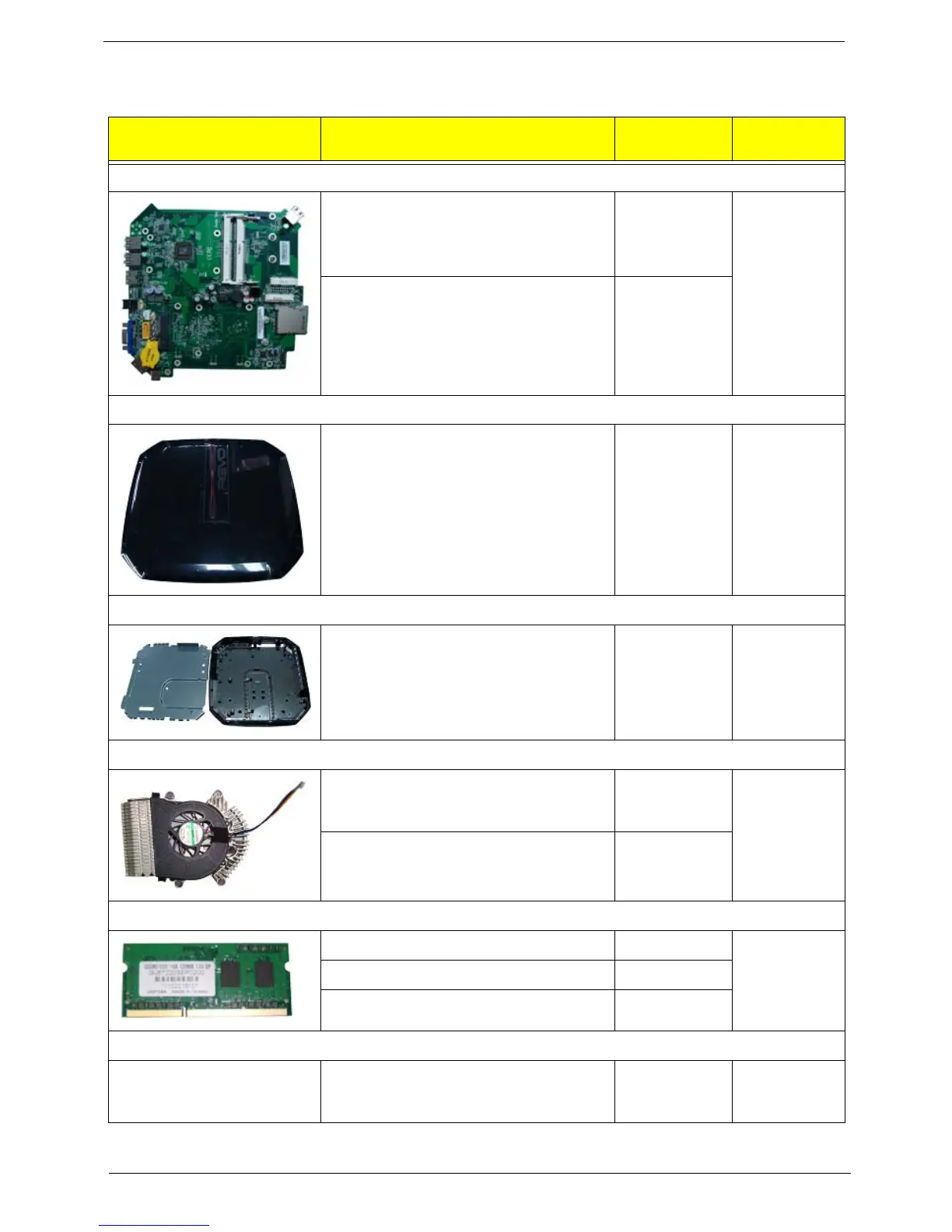

Revo 70 FRU List
Category Description Part Number
Exploded
Diagram Item
MB
Mainboard RL70 AMD Hudson D1 Proprietary
V1.0 LF ,E450, AMD Radeon HD6320
MB.SJ409.002 9
Mainboard RL70 AMD Hudson D1 Proprietary
V1.0 LF ,E300, AMD Radeon HD6310
MB.SJ309.002
Bezel
Aspire Bezel AL170 w/o ODD, w/front USBx2,
CR, 2 audio; w/rear USBx4, RJ45, VGA/HDMI,
SPDIF, w/Y stand for aMerlot
PZ.11900.336 N/A
Chassis
Chassis uLtraSFF HL110A w/o ODD w/front
USB2.0x2 w/front CR w/foot stand for aMerlot
HS.13100.264 N/A
Cooler
CCI AMD FT1 18W cooler for Merlot, w/i
blower fan /4pin PWM, w/i Pure Al + Heatpipe
+ Cu base
HI.12900.047 N/A
FXN AMD FT1 18W cooler for Merlot, w/i
blower fan /4pin PWM, w/i Pure Al + Heatpipe
+ Cu base
HI.12900.048
Memory
GU672203EP0200 KN.1GB0H.017 N/A
ACR256X64D3S13C9G LF+HF KN.2GB07.006
HU6B4303EP0200 KN.2GB0H.013
HDD
2.5" 5400rpm 320GB WD3200BPVT-22JJ5T0,
ML320S-AF2, 320G/P, 4K drive SATA 8MB
LF+HF F/W:01.01A01
KH.32008.024 N/A
