Acer RL70 - Internal Header Pin Definition

57 Chapter 5

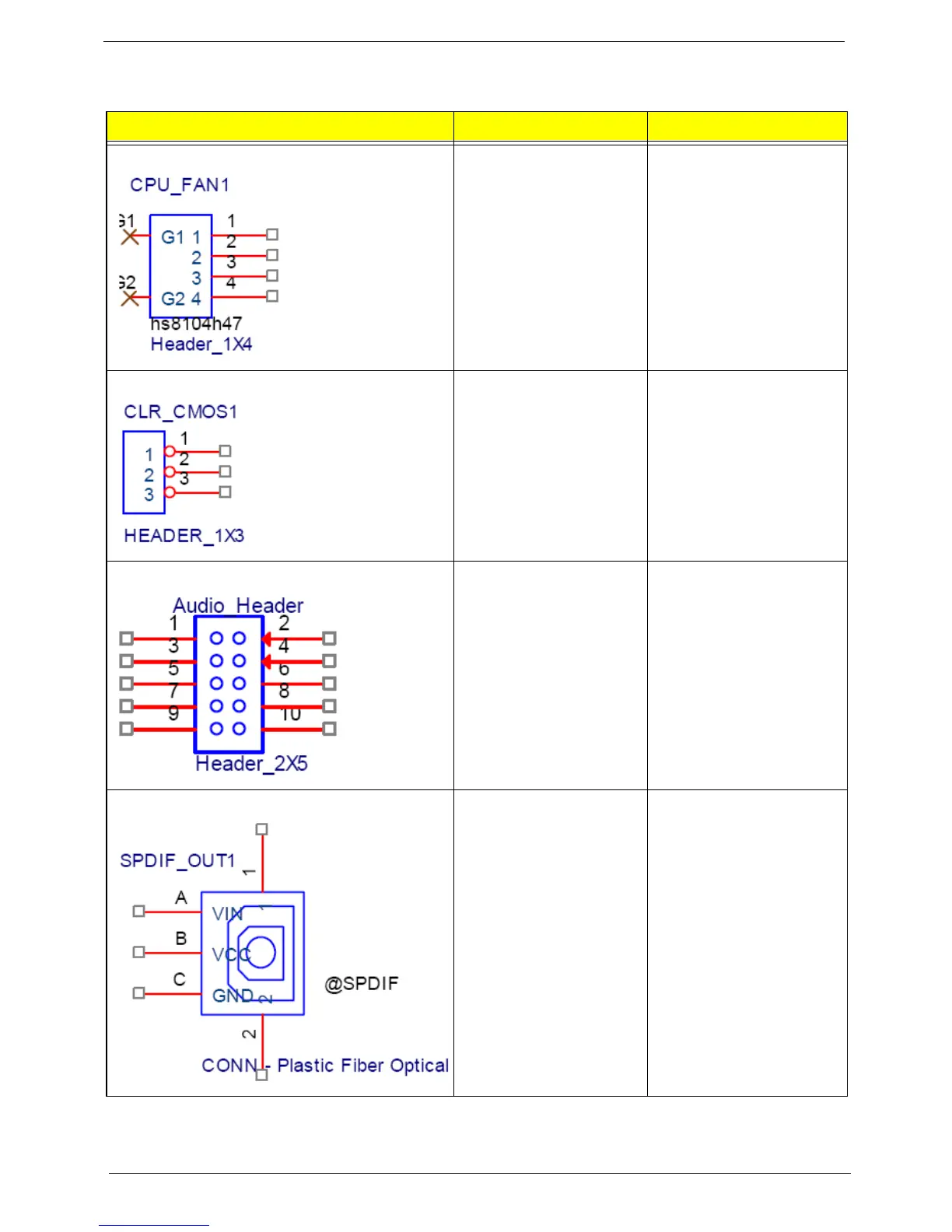

Internal Header Pin Definition
Header Name Function Definition
CPU_FAN(4 PIN) CPU FAN Header 1: GND
2: POWER
3: SENSE
4: CONTROL
CLR_CMOS(3 PIN) CLEAR CMOS Header 1-2: NORMAL
(2: A_VBAT)
2-3: CLEAR_CMOS
(3: VBAT_IO)
F_AUDIO Front Panel Audio header
(2X5)
1: LINE_OUT_L2
2: LINE_OUT_R5
3: GND_A
4: GND_A
5: FRONT-JD
6: MIC1-JD
7: GND_A
8: GND_A
9: MIC1_L2
10: MIC1_R5
SPDIF header
SPDIF header
1: GND
2: GND
A: SPDIF_OUT
B: 5V_S0
C: GND
