60 Chapter 3

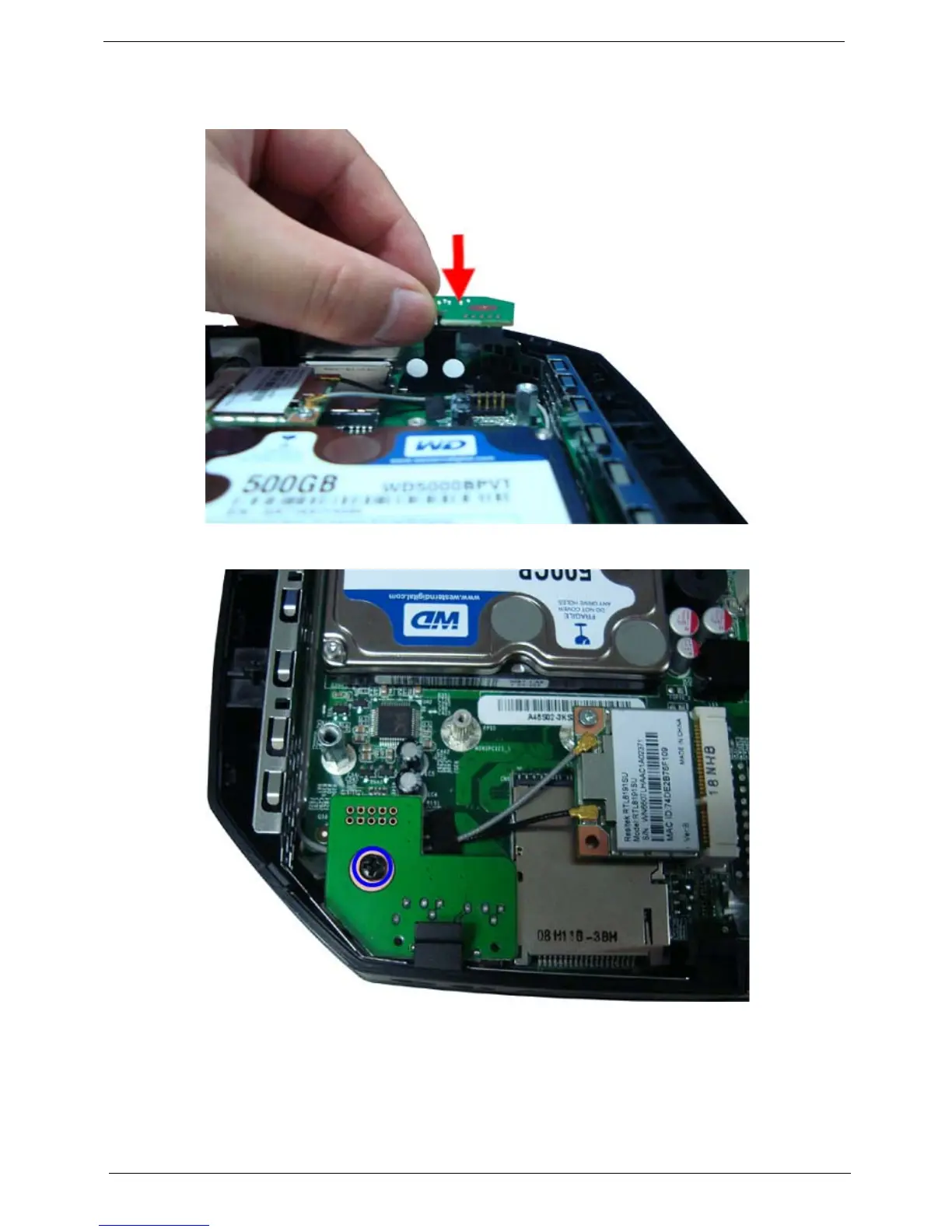

Installing the Daughter Board
1. Install the daughter board to the main board.
2. Secure the daughter board using the screw.
