58 Chapter 3

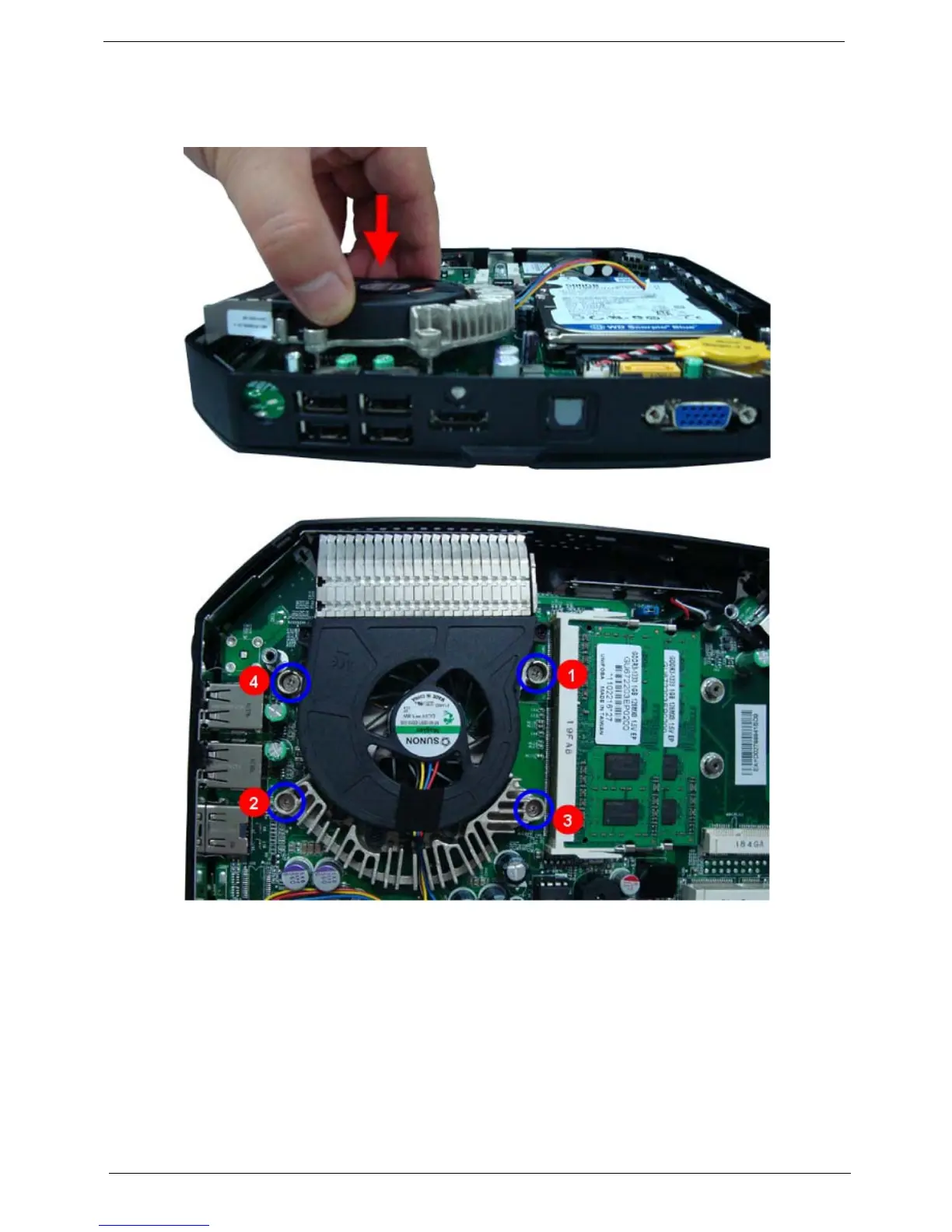

Installing the Heat Sink Fan Assembly
1. Position the heat sink assembly on top of the CPU, making sure the screws are aligned with the gaps on
the main board.
2. Secure the heat sink assembly using four screws.
