Chapter 3 57

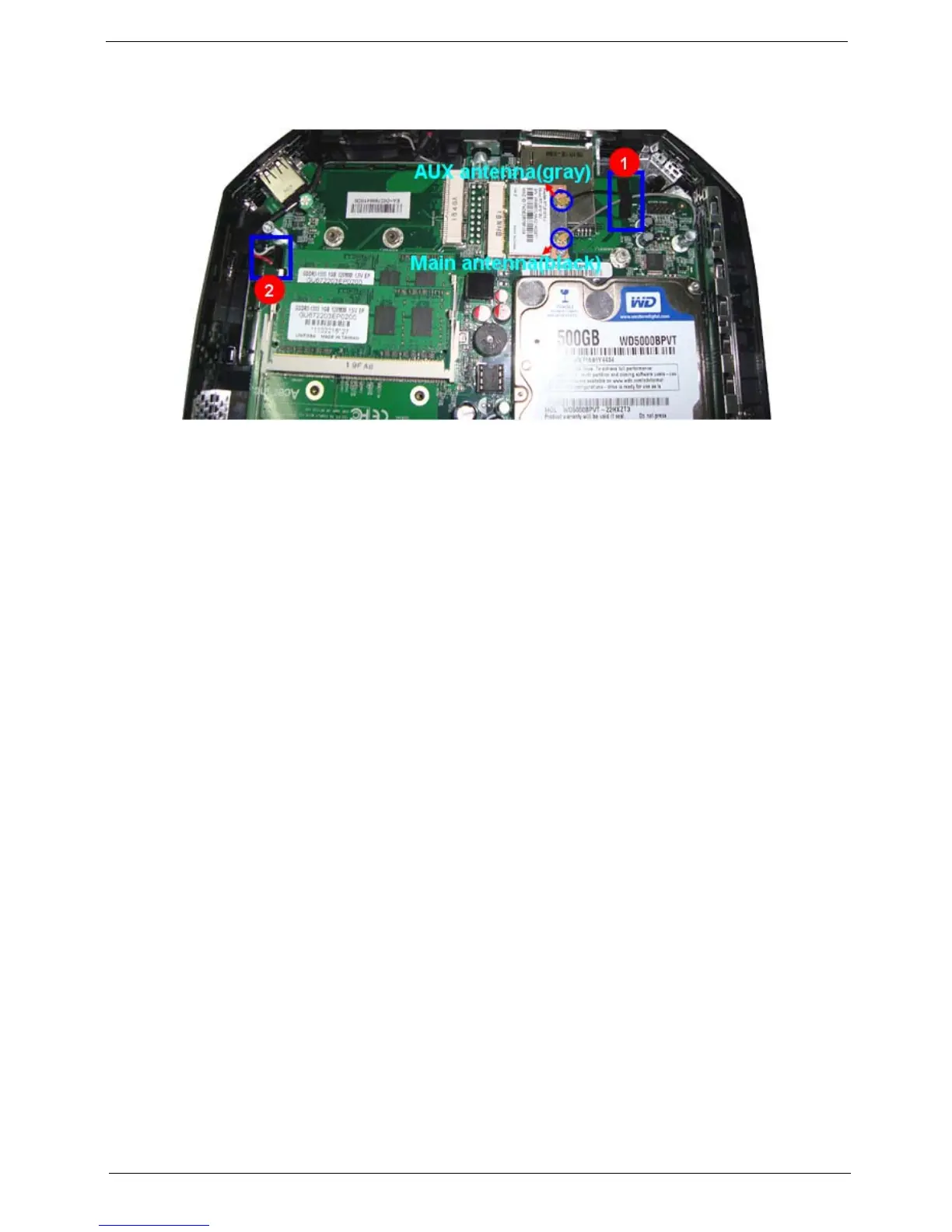

3. Connect the the wireless LAN antenna cable to connector of wireless LAN card and use the adhesion
tape to stick the wireless LAN antenna cable to mainboard(1), then connect the IR Sensor cable to
mainboard connector(2).
