66 Chapter 3
Installing the Top Cover

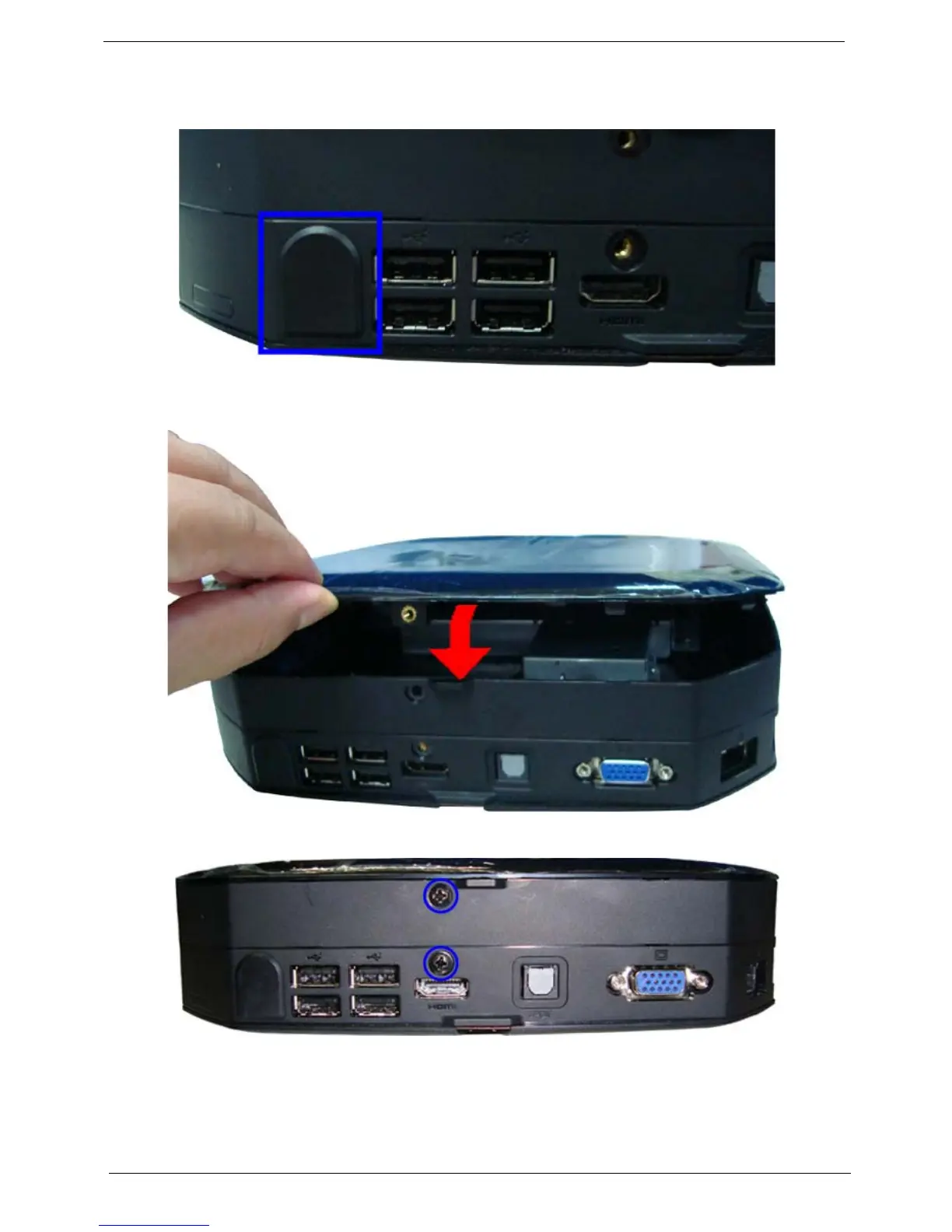

1. Install TV cap to cover TV card hole of chassisas as below picture shown.
2. Install the top cover. Make sure the front bezel retention tabs are securedly fastened to the chassis
interior.
3. Secure the top cover using the two screws.
