Chapter 5 60

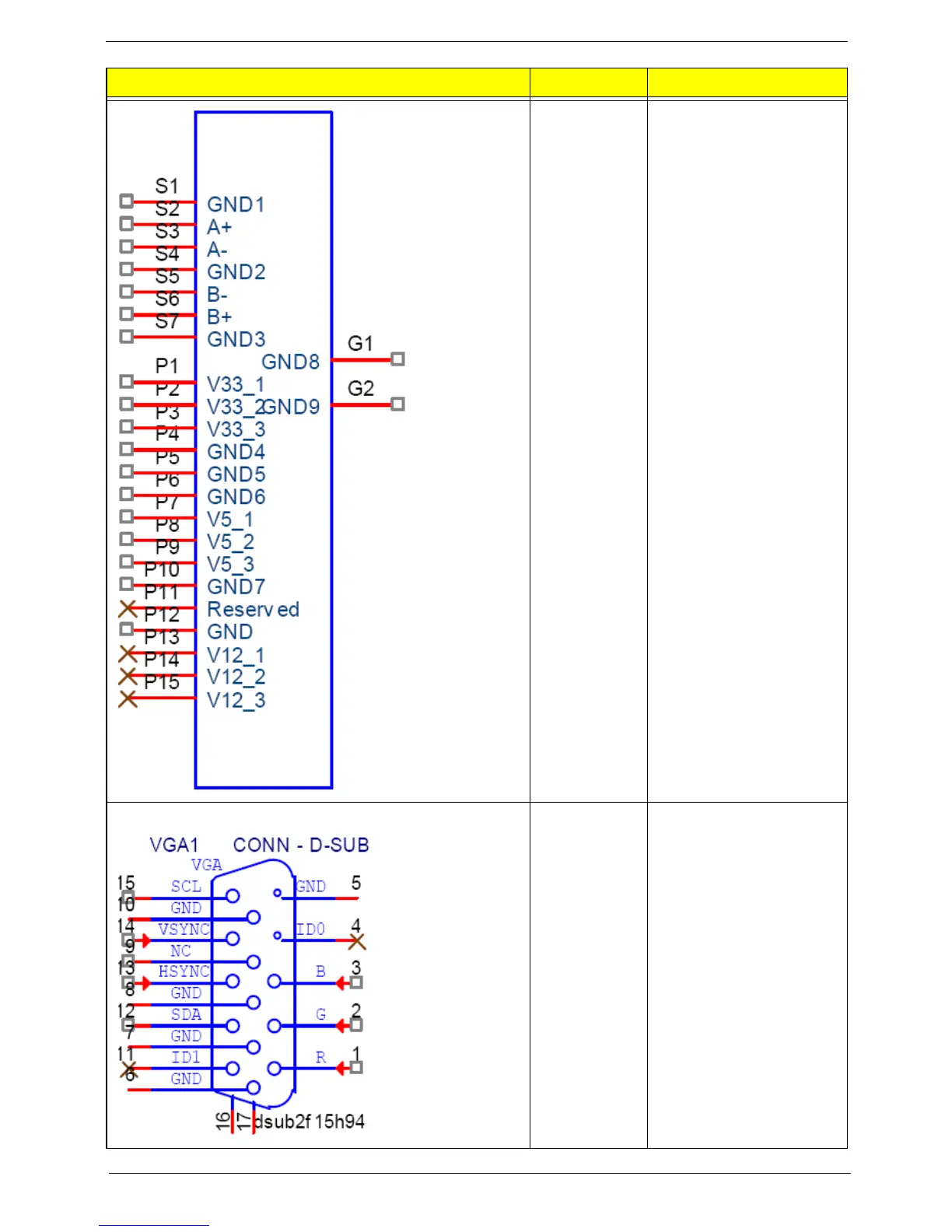

SATA_HDD_
CONN1
S1: GND
S2: SATA_TXP0_C
S3: SATA_TXN0_C
S4: GND
S5: SATA_RXN0_C
S6: SATA_RXP0_C
S7: GND
P1: 3D3V_S0
P2: 3D3V_S0
P3: 3D3V_S0
P4: GND
P5: GND
P6: GND
P7: VCC5_SATA_HDD
P8: VCC5_SATA_HDD
P10: GND
P11: NC
P12: GND
P13: NC
P14: NC
P15: NC
VGA VGA CONN 1: L_RED
2: L_GREEN
3: L_BLUE
4: NC
5: GND
6: GND
7: GND
8: GND
9: 5V_VGA
10: GND
11: NC
12: 5V_DDCA_DATA
13: 3V_HSYNC
14: 3V_VSYNC
15: 5V_DDCA_CLK
Header Name Function Definition
