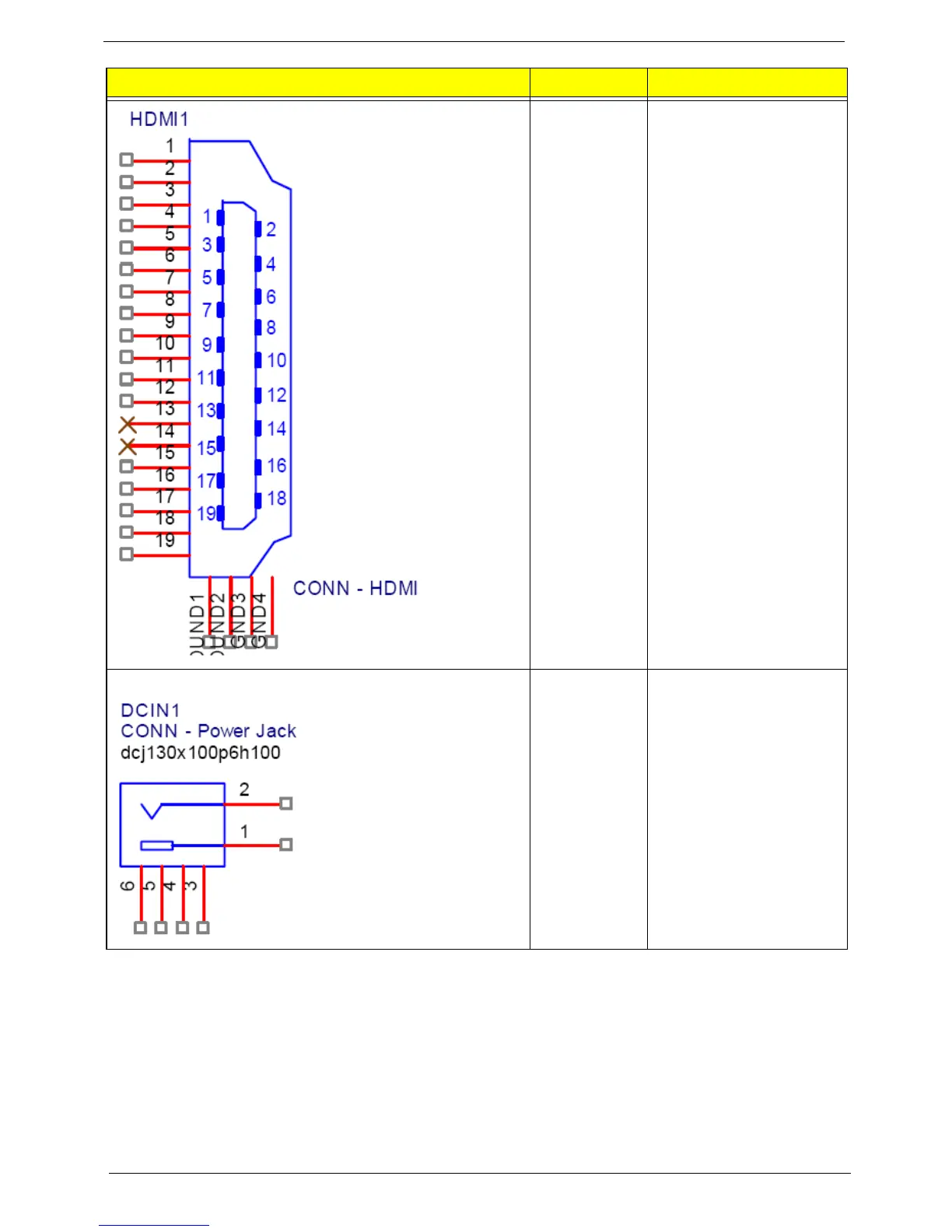

HDMI CONN 1: HDMI_TXDP2_C
2: GND
3: HDMI_TXDN2_C
4: HDMI_TXDP1_C
5: GND
6: HDMI_TXDN1_C
7: HDMI_TXDP0_C
8: GND
9: HDMI_TXDN0_C
10: HDMI_TXCP_C
11: GND
12: HDMI_TXCN_C
13: NC
14: NC
15: HDMI_DDCCLK_C
16: HDMI_DDCDATA_C
17: GND
18: 5V_CONN
19: HDMI_HPD
DCIN DCIN CONN 1: VIN
2: GND
3 4 5 6: GND
Header Name Function Definition
