Acer RL70 - Page 90

Chapter 5 62

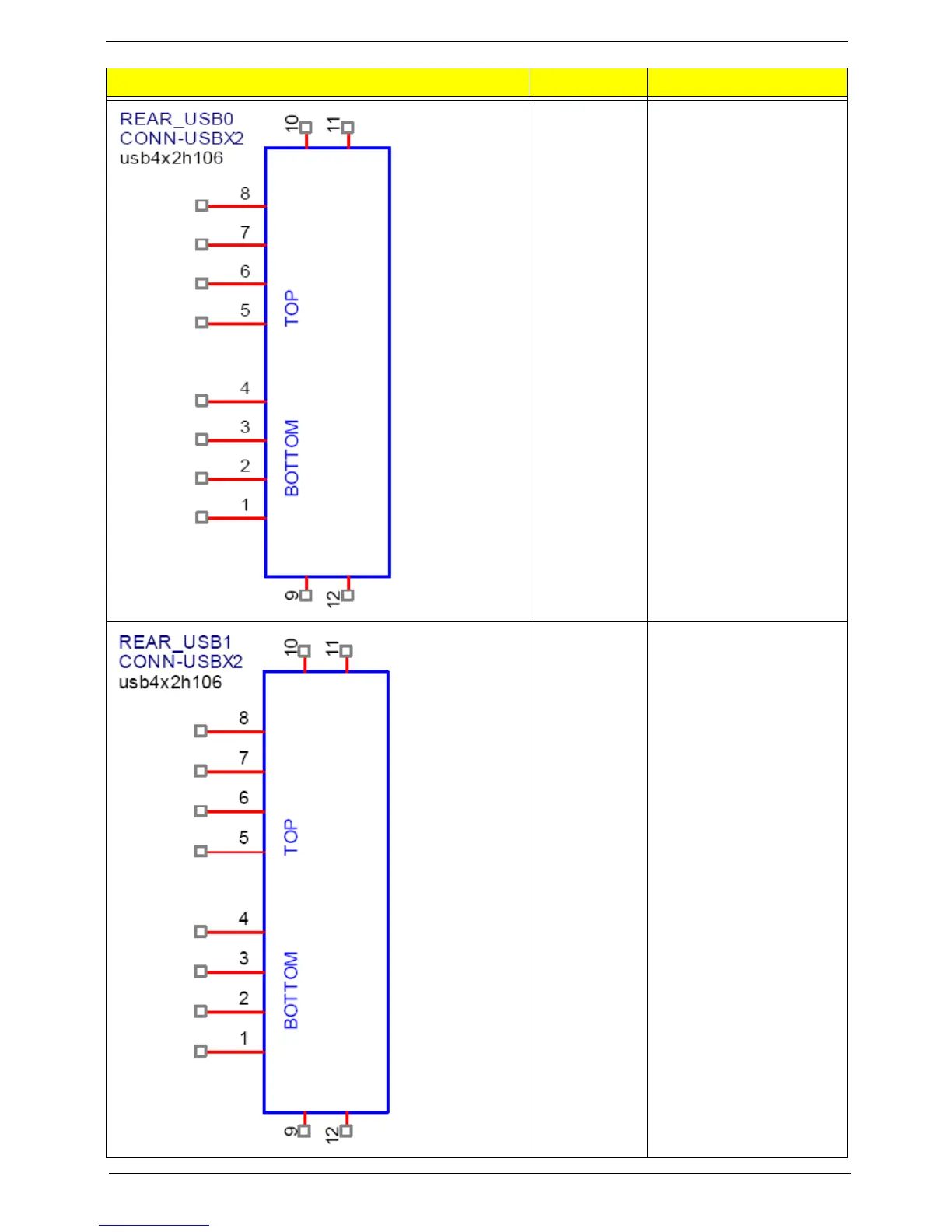

REAR_USB0 1: USB_REAR1
2: USB_0_FBJ
3: USB_0_FB
4: GND
5: USB_REAR1
6: USB_1_FBJ
7: USB_1_FB
8: GND
9,10,11,12: GND
REAR_USB1 10: USB_REAR1
11: USB_4_FBJ
12: USB_4_FB
4: GND
5: USB_REAR1
6: USB_5_FBJ
7: USB_5_FB
8: GND
9,10,11,12: GND
Header Name Function Definition
